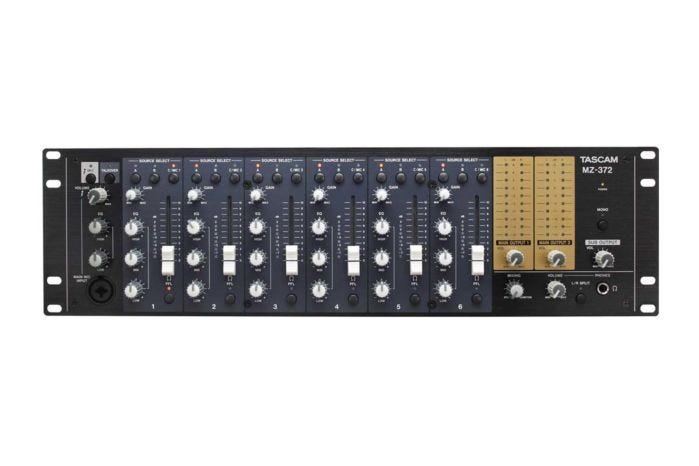

Tascam MZ-372 Industrial-Grade Zone Mixer

Availability:In stock
Cat No.
41627
SKU
MZ-372
Tascam

Order Now - Usually available to despatch in 3-5 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£520.80 £434.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Tascam MZ-372 Industrial-Grade Zone Mixer

Designed for permanent installation, the TASCAM MZ-372 offers versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package.

For maximum flexibility, source content can include music, spoken word (microphone), turntable, and more – all easily controlled via familiar sliders and assignment controls.

The MZ-372 allows multiple audio sources (19 total) to be mixed, muted, and routed to 2 redundant outputs, controlled by familiar volume sliders and assignment buttons. Input signals can be inserted via 6 audio channels, each consisting of 2 sets of unbalanced RCA stereo pairs, and 6 XLR inputs for a total of 12 sets of RCA inputs and 6 XLR inputs.

In addition, channels 2/3/4 can be set to accommodate phono-level signals for use with a turntable. Lastly, and located conveniently on the front panel, one additional XLR input is available driving a studio quality mic preamp and ducking circuit for easy voiceover and announcement work.

  • Maximum flexibility for audio routing, input selection, and multiple redundant output flow, perfect for integrator, musical instrument, and residential applications
  • Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input “sets”
  • Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
  • Two redundant output channels each with stereo XLR balanced and unbalanced RCA-type connectors; each with separate volume control
  • Separate stereo booth, recording, and headphone outputs each with independent control
  • One additional mic-compatible XLR input on the front panel with “Talkover” function automatically lowering source audio
  • Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
  • Compact 3U rack mount design
Product MZ-372
Mic Input Font Panel Connectors: 1 x XLR-1/4" / 6.35 mm combo
Input Impedance: 33 kOhms
Nominal Input Level: -65 dBu (volume knob at maximum)
Nominal Input Level: -10 dBu (volume knob at minimum)
Gain Range: 55 dB
Mic/Line Inputs Switchable Mic/Line Inputs
Connectors: 6 x XLR

Set to Mic
Maximum Input Level: -10 dBu
Minimum Input Level: -65 dBu
Input Impedance: 33 kOhms
Set to Line
Nominal Input Level: -1 dBV
Maximum Input Level: 20 dBV
Input Impedance: 22 kOhms

Dedicated Line Inputs
Connectors: 12 x RCA pairs (2 x RCA pairs per channel)
Nominal Input Level: -10 dBV
Maximum Input Level: 10 dBV
Input Impedance: 22 kOhms

Main Outputs Unbalanced
2 x RCA pairs
Rated Output Level: -10 dBV
Maximum Output Level: 6 dBV
Output Impedance: 200 Ohms

Balanced
2 x XLR pairs
Rated Output Level: 4 dBV
Maximum Output Level: 24 dBV
Output Impedance: 200 Ohms

Sub Monitor Output Sub Output: 1 x RCA pair
Rated Output Level: -16 dBV
Maximum Output Level: 0 dBV
Output Impedance: 200 Ohms

Monitor Outputs: 1 x RCA pair
Rated Output Level: -16 dBV
Maximum Output Level: 0 dBV
Output Impedance: 200 Ohms

Headphone Output 1 x 1/4" / 6.35 mm TRS
Maximum Output: 50 mW + 50 mW (into 32 Ohms load)
Frequency Response 20 Hz to 20 kHz
Distortion 0.03%
Crosstalk 65 dB
Power Dedicated AC Adapter: PS-M1524
Input Voltage: 100 to 240 VAC, 50/60 Hz
Output Voltage: 15 VDC
Output Current: 2.4 A
Power Consumption 35 W
Weight 7.1 lb / 3.2 kg
