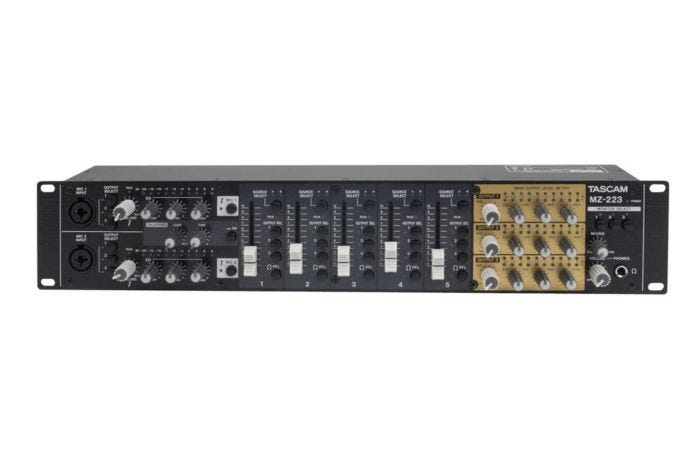

Tascam MZ-223 Industrial-Grade Zone Mixer

Availability:In stock
Cat No.
41639
SKU
MZ-223
Tascam

Order Now - Usually available to despatch in 3-5 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£414.00 £345.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Tascam MZ-223 Industrial-Grade Zone Mixer

A powerful multi-channel, multi-zone mixer housed in a compact 2U design, The TASCAM MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously.

Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel.

Designed for easy integration in virtually any system, the TASCAM MZ-223 is ideal for small format install applications such as moderate sized hotels, restaurants, meeting rooms, schools, or any situation that demands independently routed audio.

  • Easy operation and routing via familiar volume sliders, toggle switches/buttons, and knobs
  • 3 Independent Zone outputs with stereo XLR balanced and unbalanced RCA connectors per channel
  • 5 separate input channels, each with two sets of stereo RCA inputs
  • 2 additional mic-compatible XLR inputs on the front panel
  • All audio can be mixed or segregated per channel, and routed to the 3 separate Zones/Outputs
  • “Talkover” function automatically lowers other source content while microphones are in use
  • Independent 3-band EQ per output channel and per microphone input
  • Compact 2U rack mount design
Product MZ-223
MIC 1–2 INPUT (Balanced) Connectors XLR 3-31 / 1/4" (6.3mm) TRS combo jack × 2
(1: GND, 2: HOT, 3: COLD) / (Tip: HOT, Ring: COLD, Sleeve: GND)
Nominal input level
VOLUME knob at MAX –65dBu
VOLUME knob at MIN –30dBu
Input impedance 33kΩ
LINE INPUTS (Unbalanced) Connectors RCA Pin jack × 10 pairs
Nominal input level –10dBV
Maximum input level 10dBV
Input impedance 22kΩ
MAIN OUTPUTS (Unbalanced) Connectors RCA Pin jack × 3 pairs
Rated output level –10dBV
Maximum output level 6dBV
Output impedance 200Ω
MAIN OUTPUTS (Balanced) Connectors XLR 3-31 × 3 pairs (1: GND, 2: HOT, 3: COLD)
Rated output level 4dBu
Maximum output level 24dBu
Output impedance 200Ω
MONITOR OUT Connectors RCA Pin jack × 1 pair
Rated output level –16 dBV
Maximum output level 0dBV
Output impedance 200Ω
PHONES Connectors 1/4" (6.3mm) Sstereo phone jack × 1
Maximum output 50mW + 50mW (into 32Ω load)
Power Input voltage AC 100 - 240V, 50/60Hz
Output voltage DC 15V
Output current 2.4A
Power consumption 35W
Dimensions (W×H×D) 19.0" × 5.2" × 3.7" / 482 × 88 × 93.2 mm
Weight 5.5 lbs. / 2.5 kg
Frequency response 20Hz to 20kHz
Distortion 0.03% or less
S/N Ratio 80dB
