Tascam MZ-123BT Multi-Zone Audio Mixer
Availability:In stock
Cat No.
41635
SKU
MZ-123BT
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£438.00
£365.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Tascam MZ-123BT Multi-Zone Audio Mixer

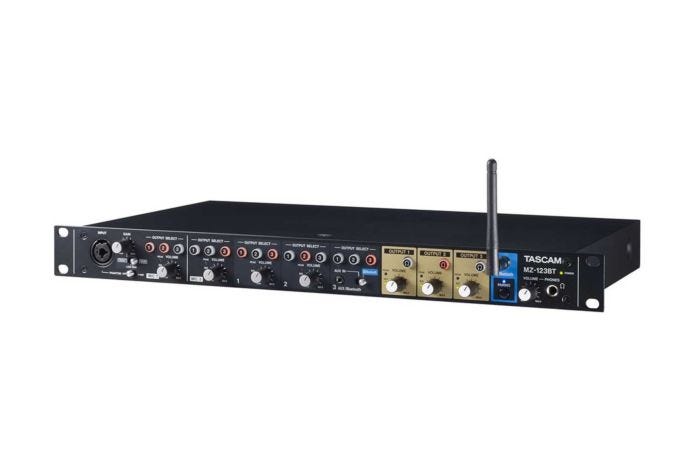

The TASCAM MZ-123BT is a compact 1U multi-channel, multi-zone professional installation mixer that provides versatile routing, mixing and distribution of up to three channels of music and announcements for a wide range of commercial applications, including retail, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities.
Featuring a simple, intuitive layout for ease of operation, the Bluetooth®-enabled MZ-123BT comes equipped with 2 versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging.
Three discrete Zone Outputs with Volume control allow routing of background music to desired areas or rooms in a restaurant, hotel, retail store or other commercial environments.
Three pair of stereo outputs featuring Euroblock connectors for fixed installations are accessible from the back panel. A MONO/STEREO switch is provided for each output.
Stereo LINE Inputs 1 and 2 (RCA, Unbalanced) allow connection of AV equipment such as TASCAM CD/Solid State Players or similar playback devices.
The Channel 3 AUX/Bluetooth® Input allows an additional audio source to be connected via Bluetooth® or 3.5mm mini plug. Each input features a Volume Control knob as well as a Zone Routing button (1, 2 or 3) for audio distribution to desired areas.
- For Commercial Retail Applications
- 3-Zone Music Distribution
- Mono or Stereo Operation
- 2 x Microphone and 2 x Line Inputs
| Product | MZ-123BT |
| MIC INPUT (BALANCED) jack (front) | Connector XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) 6.3mm (1/4") standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) Rated input level -26dBu (0.039 Vrms, when FRONT HIGH), -2dBu (0.616 Vrms, when FRONT LOW) Maximum input level -10dBu (0.245 Vrms, when FRONT HIGH), +14dBu (3.884 Vrms, when FRONT LOW) Minimum input level -65dBu (0.0004 Vrms, when FRONT HIGH), -41dBu (0.007 Vrms, when FRONT LOW) Gain adjustment range 39dB Input impedance 2.4kΩ |
| MIC IN 1-2 (BALANCED) connectors (rear) | Connectors Euroblock (balanced) 3.81mm pitch Rated input level -26dBu (0.039 Vrms, when PAD switch OFF), -2dBu (0.616 Vrms, when PAD switch ON) Maximum input level -10dBu (0.245 Vrms, when PAD switch OFF), +14dBu (3.884 Vrms, when PAD switch ON) Minimum input level -65dBu (0.0004 Vrms, when PAD switch OFF), -41dBu (0.007 Vrms, when PAD switch ON) Gain adjustment range 39dB Input impedance 2.4kΩ |
| LINE INPUTS 1-2 (UNBALANCED) connectors (rear) | Connectors RCA pin jacks Nominal input level -10dBV (0.316 Vrms) Maximum input level +6dBV (2.0 Vrms) Gain adjustment range -16dB to +16dB Input impedance 10kΩ or higher |
| AUX IN (UNBALANCED) jack (front) | Connector 3.5mm (1/8") stereo mini jack Nominal input level -20dBV (0.1 Vrms) Maximum input level -4dBV (0.63 Vrms) Input impedance 10kΩ or higher |
| OUTPUTS (BALANCED) connectors | Connectors Euroblock (balanced) 3.81mm pitch Rated output level +4dBu (1.228 Vrms, when VOLUME knob at 0 dB) Maximum output level +24dBu (12.282 Vrms) Output impedance 200Ω |
| Bluetooth | Bluetooth version 4.2 Output class 2 (about 10m unobstructed transmission distance) The transmission distance is only an estimate and might vary depending on the surrounding environment and radio wave conditions. Supported profile A2DP Supported A2DP codecs SBC, AAC, Qualcomm® aptX™ audio Supported A2DP content protection SCMS-T |
| General | Power AC 100V - 240V、50/60Hz Power consumption 25 W Dimensions 483 × 46.5 × 274.8mm (W x H x D, including protrusions, excluding Bluetooth antenna) Weight 3.0 kg Operating temperature range 0 - 40°C (32 - 104°F) Included items Power cord × 1, Euroblock plug × 8, Cable band kit × 1, Rackmount screw kit × 1, Owner's Manual (including warranty) × 1, Bluetooth Antenna × 1 |
| Frequency response | MIC INPUT → LINE OUTPUT 20Hz - 20kHz: +0.5 dB/-1.0 dB* LINE INPUT → LINE OUTPUT 20Hz - 20kHz: ±0.5 dB* |
| Distortion | MIC INPUT (front) → LINE OUTPUT 0.02% or less* MIC INPUT (rear) → LINE OUTPUT 0.01% or less* LINE INPUT → LINE OUTPUT 0.01% or less* |
| S/N ratio | MIC INPUT → LINE OUTPUT 90dB or higher* LINE INPUT → LINE OUTPUT 90dB or higher* |
