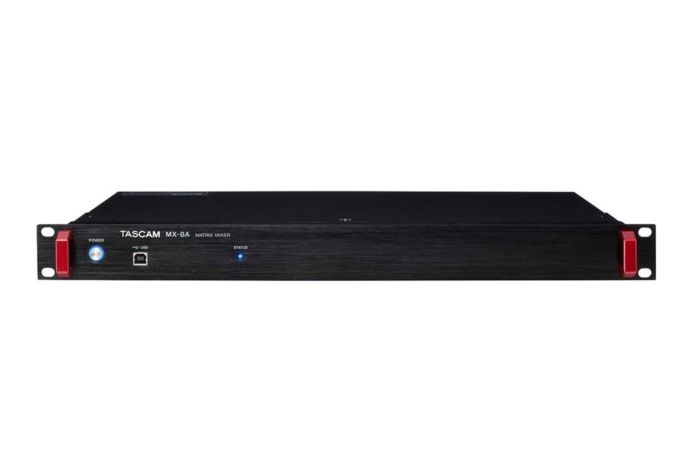

Tascam MX-8A 8-Input / 8-Output Matrix Mixer

Availability:In stock
Cat No.
41530
SKU
MX-8A
Tascam

Order Now - Usually available to despatch in 3-5 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£999.00 £832.50
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Tascam MX-8A 8-Input / 8-Output Matrix Mixer

The TASCAM MX-8A is a Matrix Mixer equipped with 8 mic / line inputs and 8 line outputs as well as integrated DSP for audio optimization in various environments and configurations Custom control apps are also available to allow easy setup and adjustment by both system integrators and end users.

Source selection, volume adjustment, and mute functions can be remotely changed with the external wall-mount programmable controllers RC-W100-R120 and RC-W100-R86. Both controllers are equipped with one LCD display, an encoder and 4 switches. Up to 8 units of RC-W100-R120 or RC-W100-R86 can be installed with one TASCAM MX-8A.

The TASCAM MX-8A is possible to mix mic and playback equipment audio signals into 8 different zones. This function can be used in installation systems for small to medium scale stores, restaurants or banquet rooms, etc.

The onboard DSP provides a full set of audio processing for mic and line inputs including Compressor, 4 parametric EQ, auto level, ducking and more. On line level outputs, the DSP delivers 10 band EQ, high pass filters, low pass filters, delay and limiter effects.

  • Microphone/Line Input Switching
  • 48V Phantom Power
  • Mic Input Pad
  • Microphone Gain
Product MX-8A
Format 44.1k / 48k Hz, 16bit / 24bit
Analog In

Connector - Euroblock (Balanced) 3.81mm pitch
Minimum input level -70dBu
Maximum input level
MIC +26dBu
LINE +24dBu
Input impedance 2.2kΩ or higher

Analog Out

Connector Euroblock (Balanced) 3.81mm pitch


Nominal output level:

+4dBu (when Ref.Level set to other than -9dBFS)
+6dBu (when Ref.Level set to -9dBFS)


Maximum output level:
(switchable) +15dBu (Ref.Level: -9dBFS)
+18dBu (Ref.Level: -14dBFS)
+20dBu (Ref.Level: -16dBFS)
+22dBu (Ref.Level: -18dBFS)
+24dBu (Ref.Level: -20dBFS)


Output impedance 200Ω or lower

RS-232C

Connector D-sub 9-pin (female, inch-standard)

RS-485

Connector RJ-45
Cables Category 5e or faster STP cables

Ethernet

Connector - RJ-45
Transmission protocol - TCP/IP
Ethernet standard -  100BASE-TX
Cables - Category 5e or faster STP cables

Power

AC100-240 V, 50/60 Hz

Power consumption

21W

Dimensions

483(W) × 45(H) × 304.1(D)mm (including protrusions)

Weight

3.0kg

Operating temperature range

0~40°C

Included items

Power cord × 1, Euroblock plug × 16、Cable band kit × 1, Rackmount screw kit × 1, Owner's Manual (including warranty) × 1

Mic amp EIN (equivalent input noise)

-126dBu or less (MIC IN → LINE OUT, Input impedance 150Ω, 22kHz LPF+A, A-weighted, JEITA)

Frequency response

+0.5/-0.5dB: 20Hz~20kHz (+24dBu input, MIC IN → LINE OUT, GAIN MIN, JEITA)

Distortion (THD+N)

0.005% or less (+24dBu input, 1kHz, MIC IN → LINE OUT, GAIN MIN, JEITA)

S/N ratio

106dB or higher (+24dBu input, 44.1 k/48 kHz sampling frequency, MIC IN → LINE OUT, GAIN MIN, JEITA)

Crosstalk

106dB or higher (+24dBu input, 1kHz, MIC IN → LINE OUT, GAIN MIN, JEITA)

Dynamic range

106dB or higher (MIC IN → LINE OUT, GAIN MIN, JEITA)
