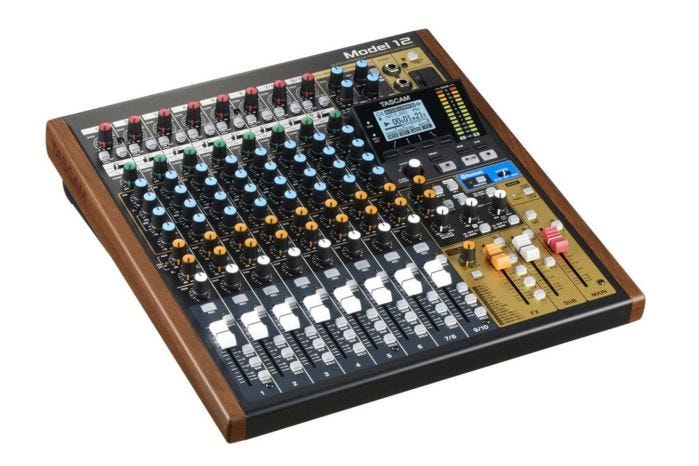

Tascam Model 12 Integrated Production Suite Mixer

Availability:In stock
Cat No.
41711
SKU
MODEL 12
Tascam

Order Now - Usually available to despatch in 3-5 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£618.00 £515.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Tascam Model 12 Integrated Production Suite Mixer

TASCAM's Model 12 is a compact all-in-one integrated mixer designed for music and multimedia creators, songwriters and performers.

Features include TASCAM's critically acclaimed multi-track recorder, USB audio/MIDI interface, DAW control functions, and unique podcasting capability including mix-minus and smartphone inputs.

The Model 12 supports your creative process, production, and workflow from start to finish including podcasting.

The Model 12's intuitive internal 12-track recorder records WAV files of up to 24-bit/48 kHz audio quality directly to an SD card, with 10-track playback. Supporting metronome, punch-in/out, and overdubbing functions, the internal recorder also allows WAV files to be imported directly into a DAW for further editing or production.

  • 10 inputs (8 Monaural XLR mic inputs [+48V support])/10 TRS line inputs) and Bluetooth® 5.0 input, 3.5mm (1/8") TRRS input (for Smartphone)
  • TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 6)
  • 1-knob compressor and 3 band EQ installed on all input modules
  • Equipped with 60mm faders
  • Selectable PFL/AFL modes and the in-place solo (SIP)
  • Stereo output to MAIN L-R and SUB L-R, monaural send to AUX1 and AUX2
  • Dual headphone output with individual volume and source selection
  • TASCAM FX equipped
  • Recording function with punch in/out support allows direct SD card 12 track recording / 10 track playback
  • 12 in / 10 out USB audio interface function (USB Type-C connector)
  • Built-in metronome function
  • Bluetooth® 5.0 input with AAC and SBC codec support
  • Equipped with MIDI IN/OUT connectors, USB-MIDI interface function, and MTC output/MIDI clock output with SPP support
  • Supports simple DAW control (HUI/MCU protocol emulation)
  • Click output with TAP TEMPO support
  • Dual footswitch (TRS connector) function allows assignment of transport, FX, etc.
  • Smartphone input with mix-minus function
Product MODEL 12
Recording section Supported Media SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB)
Class 10 or higher required.
File System SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
Recording File Format WAV(BWF)
Playback Format WAV, BWF
Sampling Frequency 44.1k / 48k Hz
Bit Depth 16 / 24 bit
Maximum Recordable ChannelNumber 12ch (10ch + 2 stereo mix)
Audio Inputs

MIC IN CH1 to 6, 7, 9
Connector XLR 3-31 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Input Level +10dBu
Nominal Input Level -8dBu
Minimum Input Level -58dBu
Gain Adjustable Range 0 to 50dB
Input Impedance 1.8k ohm
Phantom Power supply +48V


LINE IN CH1 to 6, 7/8, 9/10
Connector 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Input Level +22dBu
Nominal Input Level +4dBu
Gain Adjustable Range -10 to +40 dB: CH 1 to 6, -20 to +30 dB: CH 7/8 and 9/10
Input Impedance 22k ohm


INST IN CH1 to 6, 7, 9
Connector 1/4" (6.3mm) TS Phone jack (T: HOT, R: GND, S: GND, Unbalanced)
Maximum Input Level +13.8dBV
Nominal Input Level -4.2dBV
Gain Adjustable Range -10 to +40 dB (CH 1 to 6), -20 to +30 dB (CH 7 and 9)
Input Impedance 1M ohm


INSERT CH 1 and 2
Connector 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)
Return (Ring)
Maximum Input Level +18dBu
Nominal Input Level 0dBu
Input Impedance 5k ohm
Send (Tip)
Maximum Output Level +18dBu
Nominal Output Level 0dBu
Output Impedance 100 ohm


MUSIC/TALK CH 9/10
Connector 1/8" (3.5mm) TRRS jack (for Smartphone, Unbalanced)
Maximum Input Level +8dBV
Nominal Input Level -10dBV
Input Impedance

Outputs

MAIN OUTPUT
Connector XLR 3-32 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Output Level +22dBu
Nominal Output Level +4dBu
Output Impedance 200 ohm


SUB OUT, AUX OUT
Connector 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Output Level +16dBu
Nominal Output Level -2dBu
Output Impedance 200 ohm


PHONES OUT PHONES 1 and 2
Connector 1/4" (6.3mm) Stereo Phone jack
Maximum Output Level

FOOTSWITCH

Connector 1/4" (6.3mm) TRS Phone jack

USB Audio

Connector USB Type-C
Format USB2.0 High-Speed, Mass-storage class/USB Audio Class
Sampling Rate 44.1k / 48k Hz
Bit Depth 16 / 24 bit
Maximum INPUT 12ch
Maximum OUTPUT 10ch

Bluetooth

Version 5.0
Output Class Class 2 (Transmission range: approx. 33 ft. / 10 m)
* Transmission range may vary, depending on surroundings.
Supported Profile A2DP
Supported A2DP Codecs SBC, AAC
A2DP Content Protection SCMS-T

Channel EQ

Low-Cut 100Hz, -18dB / Octave
Hi-Shelving +15dB / -15dB, Cut off frequency = 10kHz
Mid-Peaking +15dB / -15dB, 100Hz to 8kHz Variable, MID Band Q Fix, 0.5
Low-Shelving +15dB / -15dB, Cut off frequency = 80Hz

Master section EQ

Hi-Shelving +15dB / -15dB, Cut off frequency = 10kHz
MID-Peaking +15dB / -15dB, 100Hz to 8kHz Variable, Q: 0.5/5
Low-Shelving +15dB / -15dB, Cut off frequency = 60Hz

Power

AC 100 to 240V, 50/60Hz

Power Consumption

16W

Dimensions

343(W) × 360(H) × 98.8(D)mm
13.5(W) × 14.2(H) × 3.9(D)inch
(including knob height and protrusion)

Weight

4.3 kg / 9.5 lb

Operating Temperature

5 to 35 °C / 41 to 95 °F

S/N ratio

-103dBu (MAIN OUT, MAIN fader: nominal position)

Frequency Response

20Hz to 20kHz (+0.5/-0.5 dB, MIC IN to MAIN OUT)

Equivalent Input Noise

-128dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)

Total Harmonic Distortion

0.004% (MIC IN to MAIN OUT, nominal input level, +2dBu, 1kHz, GAIN min.)

Crosstalk

-95dB, channels / input and output
(1kHz, PAN fully counter clockwise / fully clockwise)

Maximum Gain

74dB (MIC to MAIN OUT)
50dB (MIC to INSERT OUT)
74dB (MIC to SUB OUT)
75dB (MIC to AUX 1/2 OUT)
24dB (USB/SD to MAIN OUT)
(EQ flatten, PAN fully counter clockwise / fully clockwise)
