Tascam MM-4D-IN-E 4-Channel Mic / Line Input Dante Converter with built-in DSP Mixer

Availability:In stock
Cat No.
41683
SKU
MM-4D-IN-E
Tascam

Order Now - Usually available to despatch in 3-5 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£749.00 £624.17
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

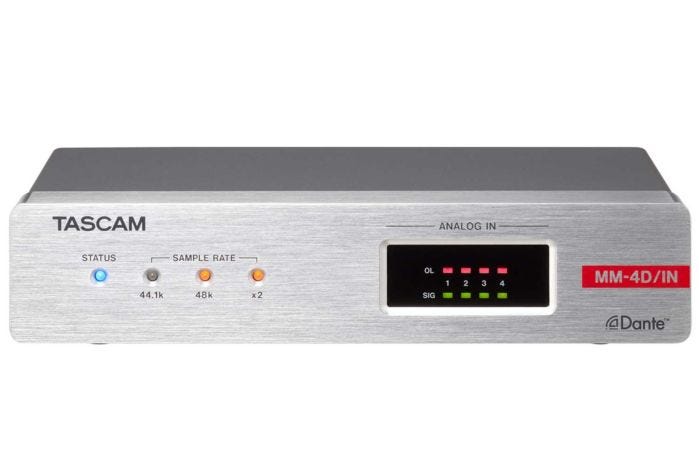

Tascam MM-4D-IN-E 4-Channel Mic / Line Input Dante Converter with built-in DSP Mixer

The MM-4D/IN-E is a compact converter that converts 4-channel mic/line input signals into Dante signals.

With half the size of a standard 1U rack, the MM-4D/IN-E is suitable for different Dante systems as an exquisite analog output unit.

The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-4D/IN-E supports up to 96kHz/24bit and uses Euroblock connectors for analog mic/line input.

The MM-4D/IN-E converts 4-channel mic/line input signals into 4-channel Dante output signals. It also supports 4-channel Dante input/output making it possible to use audio sources within an established Dante network.

The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments.

Key Features:

  • 4-channel mic/line input with phantom power (+48v) support
  • Supports remote mic gain control
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Up to 24bit/96kHz
  • Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 8 in/4 out matrix mixer)
  • Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
  • Compatible with Dante Domain Manager and Dante AES67 Mode
  • Flexible scene preset function allows to work in different area situations (Up to 50 presets)
  • Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
  • 2 types of user control software available for Windows/Mac/iOS/Android devices:
  • For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
  • For end-users: simple app design for only the necessary functions such as area volume settings, etc.
  • Remote control via GPI and Dante
  • Half-rack mountable size
  • Equipped with indicators that show LAN/Dante connection status and sample rate
  • Equipped with signal indicators that monitor line input signals
  • Configurable reference level (via remote control only)
  • Surface rack mountable angles for installation under desks included
  • 4-channel mic/line input with phantom power (+48v) support
  • Supports remote mic gain control
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Installation brackets
  • Euroblock plugs
  • Cable band kit
  • Owner's manual (including warranty)
Product MM-4D-IN-E
General 44.1/48/88.2/96kHz,16/24-bit, 4 channels
Input/output ratings Connector RJ-45
Transmission protocol Dante
Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab)
Cables category 5e or faster STP cables
ANALOG IN connectors Connector XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Minimum input level -70 dBu
Maximum input level +26 dBu
Input impedance 2.0 kΩ or higher
Control input/output Connectors Euroblock 3.81mm pitch
LED connectors
Output format open collector (10Ω output impedance, 48V withstand voltage, 35mA maximum current)
Low level maximum output voltage 0.5 V
SWITCH connectors
Maximum input voltage 5.5 V
High level minimum input voltage 2.31 V
Low level maximum input voltage 0.99 V
MIC IN → DANTE OUT Mic amp EIN (equivalent input noise) -125 dBu (150Ω, 22kHz LPF+A, JEITA)
Frequency response +/-0.5 dB: 20 Hz - 20 kHz(44.1/48kHz sampling frequency, JEITA)
+/-0.5 dB: 20 Hz - 40 kHz(88.2/96kHz sampling frequency, JEITA)
Distortion (THD+N) 0.003 %(when -1 dBFS input, 44.1/48/88.2/96kHz samplingfrequency, JEITA)
S/N ratio 108 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
Crosstalk 100 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
Dynamic range 108 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
Other Power PoE class 0
TASCAM PS-P1220E AC adapter (sold separately)
Power consumption 7.5W
Dimensions 214 x 44.45 x 136.1 mm (W x H x D, including protrusions)
Weight 885 g
Operating temperature range 0°C-40°C
Included items Installation brackets, Euroblock plugs, Cable band kit, Owner's manual (including warranty)
