Tascam MM-2D-E 2-Channel Mic/Line Input/Output Dante Converter
Availability:In stock
Cat No.
41690
SKU
MM-2D-E
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£642.00
£535.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Tascam MM-2D-E 2-Channel Mic/Line Input/Output Dante Converter

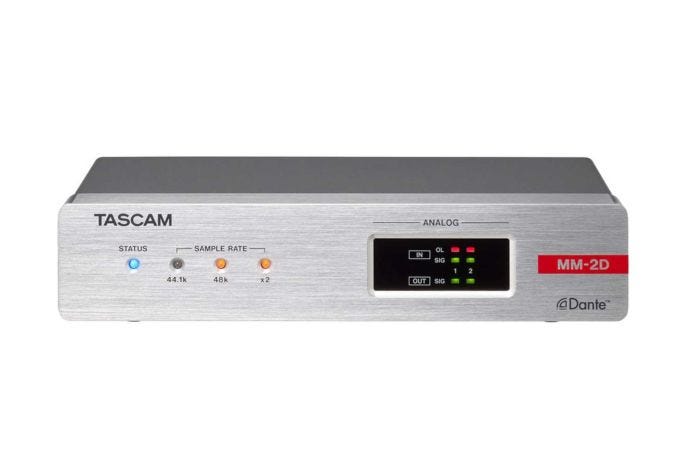

The MM-2D-E is a compact converter that converts 2-channel mic/line input/output signals into Dante signals.
With half the size of a standard 1U rack, the MM-2D-E is suitable for different Dante systems as an exquisite analog output unit.
The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-2D-E supports up to 96kHz/24bit and uses Euroblock connectors for analog mic/line input/output.
The MM-2D-E can either convert 2-channel mic/line input signals into 2 Dante output signals, or 2 Dante input signals into 2-channel line output signals. In addition, it also supports 4-channel Dante input/output as well, making it possible to use audio sources within an established Dante network.
The installed mic preamps support phantom power (+48V) and the input gain can be remote controlled via TASCAM DCP CONNECT software, via Dante or other external controllers.
Key Features:
- 2-channel mic/line input with phantom power (+48v) support
- Supports remote mic gain control
- 2 line output
- 4 Dante input/output
- Supports PoE (Power over Ethernet)
- Up to 24bit/96kHz
- Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 6 in/4 out matrix mixer)
- Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
- Compatible with Dante Domain Manager and Dante AES67 Mode
- Flexible scene preset function allows to work in different area situations (Up to 50 presets)
- Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
- 2 types of user control software available for Windows/Mac/iOS/Android devices:
- For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
- For end-users: simple app design for only the necessary functions such as area volume settings, etc.
- Remote control via GPI and Dante
- Half-rack mountable size
- Equipped with indicators that show LAN/Dante connection status and sample rate
- Equipped with signal indicators that monitor line input/output signals
- Configurable reference level (via remote control only)
- Surface rack mountable angles for installation under desks included
- 2-channel mic/line input with phantom power (+48v) support
- Supports remote mic gain control
- 2 line output
- 4 Dante input/output
| Product | MM-2D-E |
| General | 44.1/48/88.2/96kHz,16/24-bit, 2 channels |
| Input/output ratings |
DATA/DATA+PoE connectors
|
| Control input/output |
External control connectors(LED/SWITCH) |
| Other |
Power PoE class 0 |
| MIC IN → DANTE OUT |
Mic amp EIN (equivalent input noise) -125 dBu (150Ω, 22kHz LPF+A, JEITA) |
| DANTE IN → LINE OUT |
Frequency response +/-0.5 dB: 20 Hz - 20 kHz(44.1/48kHz sampling frequency, JEITA) |
