Tascam ML-4D/OUT-X 4-Channel Line-Output Dante Converter
Availability:In stock
Cat No.
41681
SKU
ML-4D-OUT-X
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£599.00
£499.17
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

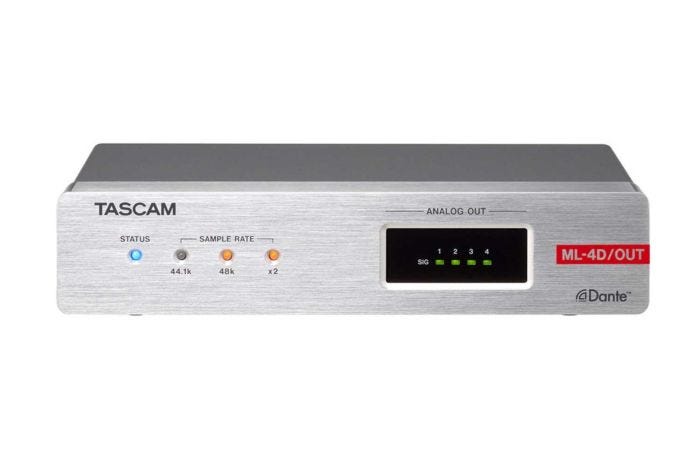

Tascam ML-4D/OUT-X 4-Channel Line-Output Dante Converter
The ML-4D/OUT-X is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-X is suitable for different Dante systems as an exquisite analogue output unit.
The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-X supports up to 96kHz/24bit and uses XLR connectors for analogue line output.
Key Features:
- For PA, SR, and Pro Audio Applications
- 4 Analog 3-Pin XLR Line Outputs
- 4 Dante Inputs/Outputs
- Flexible Routing
- For PA, SR, and Pro Audio Applications
- 4 Analog 3-Pin XLR Line Outputs
- 4 Dante Inputs/Outputs
- Flexible Routing
- Tascam ML-4D/OUT-X 4-Channel Line-Output Dante Converter with Built-In DSP Mixer
- 2 x Installation Brackets
| Product | ML-4D-OUT-X |
| General | Formats and channels 44.1/48/88.2/96kHz,16/24-bit, 4 channels |
| Input/output ratings | Connector RJ-45 Transmission protocol Dante Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab) Cables category 5e or faster STP cables |
| ANALOG OUT connectors | Connector XLR-3-32 (1: GND, 2: HOT, 3: COLD) Nominal output levels +4 dBu (when Ref. Level not -9 dBFS) +6 dBu (when Ref. Level set to -9 dBFS) Maximum output level (switchable) +15 dBu (Ref. Level: -9 dBFS) +18 dBu (Ref. Level: -14 dBFS) +20 dBu (Ref. Level: -16 dBFS) +22 dBu (Ref. Level: -18 dBFS) +24 dBu (Ref. Level: -20 dBFS) Output impedance 200 Ω or lower |
| Other | Power PoE class 0 TASCAM PS-P1220E AC adapter (sold separately) Power consumption 4W Dimensions 214 x 44.45 x 136.1 mm (W x H x D, including protrusions) Weight 863 g Operating temperature range 0°C-40°C Included items Installation brackets, Owner's manual (including warranty) |
