Tascam ML-32D Dante / Analog Converter
Availability:In stock
Cat No.
41519
SKU
ML-32D
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£2,658.00
£2,215.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

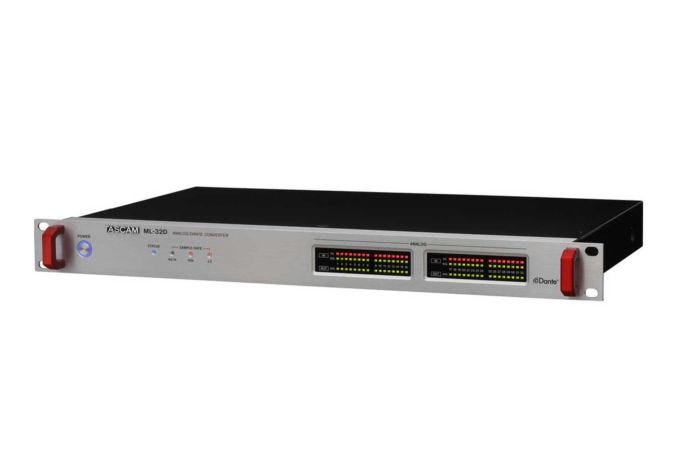

Tascam ML-32D Dante / Analog Converter
The ML-32D has four D-Sub inputs and four D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices.
This simple, yet elegant, solution enables audio to be quickly and easily inserted into – or extracted from – the Dante audio stream.
Key Features:
- For External Audio, In or Out of Dante
- 32-Channel Inputs and Outputs
- 24-Bit, 48 kHz / 96 kHz Format
- 8x D-Sub Connectors
- For External Audio, In or Out of Dante
- 32-Channel Inputs and Outputs
- 24-Bit, 48 kHz / 96 kHz Format
- 8x D-Sub Connectors
| Product | ML-32D |
| Form Factor | Rackmount |
| Channels of I/O | 32 Input / 32 Output |
| Max Sample Rate/Resolution | 96 kHz / 24-Bit |
| Number of Mic Preamps | None |
| Analog Audio I/O | 4 x DB-25 25-Pin 8-Channel Input 4 x DB-25 25-Pin 8-Channel Output |
| Digital Audio I/O | None |
| Network I/O | 2 x RJ45 Dante |
| Frequency Response | 20 Hz to 20 kHz +0.1/-0.5 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +0.1/-0.5 dB (at 96 kHz, JEITA) |
| Impedance | ≥ 10 Kilohms |
| THD+N | 0.001% |
| SNR | 113 dB |
| Crosstalk | > 115 dB |
| Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| Bit Depths | 16 / 24-Bit |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 22 W |
| Rackmount Size | 1 RU |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 19 x 12 x 1.8" / 483 x 303.8 x 45 mm |
| Weight | 7.7 lb / 3.5 kg |
