Tascam ML-16D Dante / Analog Converter
Availability:In stock
Cat No.
41520
SKU
ML-16D
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,605.60
£1,338.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

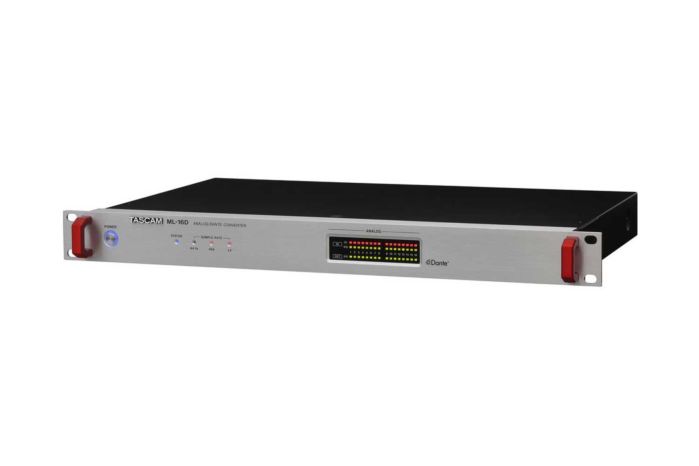

Tascam ML-16D Dante / Analog Converter
The ML-16D has 2 D-Sub inputs and 2 D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices.
This simple, yet elegant, solution enables audio to be quickly and easily inserted into – or extracted from – the Dante audio stream.
Key Features:
- For External Audio, In or Out of Dante
- 16-Channel Inputs and Outputs
- 24-Bit, 48 kHz / 96 kHz Format
- 4x D-Sub Connectors
- For External Audio, In or Out of Dante
- 16-Channel Inputs and Outputs
- 24-Bit, 48 kHz / 96 kHz Format
- 4x D-Sub Connectors
| Product | ML-16D |
| Form Factor | Rackmount |
| Channels of I/O | 16 Input / 16 Output |
| Max Sample Rate/Resolution | 96 kHz / 24-Bit |
| Number of Mic Preamps | None |
| Analog Audio I/O | 2 x DB-25 25-Pin 8-Channel Input 2 x DB-25 25-Pin 8-Channel Output |
| Digital Audio I/O | None |
| Network I/O | 2 x RJ45 Dante |
| Frequency Response | 20 Hz to 20 kHz +0.1/-0.5 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +0.1/-0.5 dB (at 96 kHz, JEITA) |
| Impedance | ≥ 10 Kilohms |
| THD+N | 0.001% |
| SNR | 113 dB |
| Crosstalk | > 115 dB |
| Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| Bit Depths | 16 / 24-Bit |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 22 W |
| Rackmount Size | 1 RU |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 19 x 12 x 1.8" / 483 x 303.8 x 45 mm |
| Weight | 7.7 lb / 3.5 kg |
