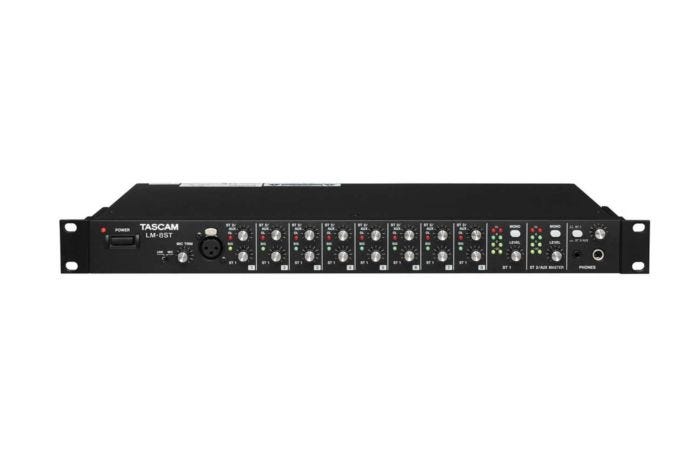

Tascam LM-8ST Rackmount Line Mixer
The TASCAM LM-8ST is a 1-space rackmountable line mixer for installation, studio submixing, keyboardists or anyone looking for a great-sounding mix.
Eight pairs of balanced 1/4" TRS inputs – switchable from +4 or –10dB – can be bussed to a pair of XLR balanced outputs, labeled ST1 and ST2/AUX.
Pre or post-fader bussing is available for the alternate buss, and master output level controls and metering keep signals under control. A microphone input is also provided for announcements or performance.
- 8 stereo channel / 4-buss line mixer
- 8 stereo 1/4" TRS balanced inputs with –10/+4dB switch
- 1U rack mountable
- Mic input with trim control on front panel
- 2-segment LED meter per channel
- ST1 and ST2/AUX level control per channel
- ST1 and ST2/AUX master level controls
- Each channel switchable to ST2 (pre fader) or AUX (post) output
- 1/4" and 1/8" stereo headphone outputs
- XLR balanced ouptuts for ST1 and ST2/AUX
- Stereo balanced buss output/input for cascade
- Ground lift switch and terminal
| Product | LM-8ST |
| MIC IN | Connector XLR-3-31 (1: GND, 2: HOT: 3: COLD) × 1 Input impedance 2.4kΩ Nominal input level –58dBu (1mV) to –12dBu (195mV) Maximum input level +10dBu (2.45V) |
| STEREO IN | Connector 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 8 pairs Input impedance 16kΩ Nominal input level +4dBu (1.23V) Maximum input level +24dBu (12.3V) |
| MASTER BUSS IN | Connector 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 1 pair Input impedance 16kΩ Nominal input level +4dBu (1.23V) Maximum input level +24dBu (12.3V) |
| ST1, ST2/AUX OUT | Connector XLR-3-32 Phone jack (1: GND, 2: HOT, 3: COLD) × 2 pairs Input impedance 94Ω Nominal input level +4dBu (1.23V) Maximum input level +24dBu (12.3V) |
| ST1, ST2/AUX OUT | Connector RCA Pin jack × 2 pairs Input impedance 200Ω Nominal input level –10dBu (0.3V) Maximum input level +10dBu (3.16V) |
| Buss Out | Connector 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 1 pair Input impedance 94Ω Nominal input level +4dBu (1.23V) Maximum input level +24dBu (12.3V) |
| Phones Out | Connector 1/4" (6.3mm) Stereo Phone jack × 1 Maximum output level 250mW + 250mW (32Ω) |
| Power | AC 100 - 240V, 50/60Hz |
| Power consumption | 15W |
| Dimensions (W×H×D) | 19.0" × 1.73" × 11.0" / 482 × 44 × 280 mm |
| Weight | 8.4 lbs. / 3.8 kg |
