Tascam AE-4D AES/EBU Input/Output Dante Converter
Availability:In stock
Cat No.
41714
SKU
AE-4D
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£584.40
£487.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

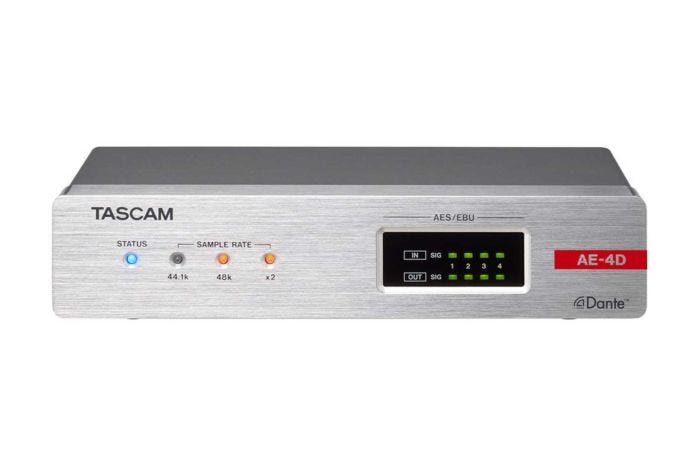

Tascam AE-4D AES/EBU Input/Output Dante Converter
The AE-4D is a compact converter that mutually converts AES/EBU signals and 4-channel Dante signals.
With half the size of a standard 1U rack, the AE-4D is suitable for different Dante systems as an exquisite AES/EBU input/output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. AE-4D supports up to 96kHz/24bit and uses XLR connectors for AES/EBU output.
The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments.
Level control is available when converting AES/EBU signals and Dante signals, and managing the input/output of an AES/EBU unit makes it easier to work with Dante systems. In addition, with a matrix mixer function and effects installed in the Dante Compact Processor Series, it is possible to build up a complete small system with units from this series only.
The Dante Compact Processor Series are compatible with Dante Domain Manager, which features security functions and enables the use of wide-area networks. This helps the Dante Compact Processor Series access easily to Dante systems using already established network infrastructures. With the AES67 mode, connection to AES67 network systems is also possible.
Key Features:
- 4 AES/EBU input/output
- 4 AES/EBU inputs with sampling rate converter
- 4 Dante input/output
- Supports PoE (Power over Ethernet)
- Up to 24bit/96kHz
- Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
- Compatible with Dante Domain Manager and Dante AES67 Mode
- Flexible scene preset function allows to work in different area situations (Up to 50 presets)
- Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
- 4 AES/EBU input/output
- 4 AES/EBU inputs with sampling rate converter
- 4 Dante input/output
- Supports PoE (Power over Ethernet)
| Product | AE-4D |
| Formats and channels | 44.1/48kHz,16/24-bit, 4 channels 88.2/96kHz,16/24-bit, 2 channels (double speed) |
| Input/output ratings |
DATA/DATA+PoE connectors
|
| Other |
Power PoE class 0 |
