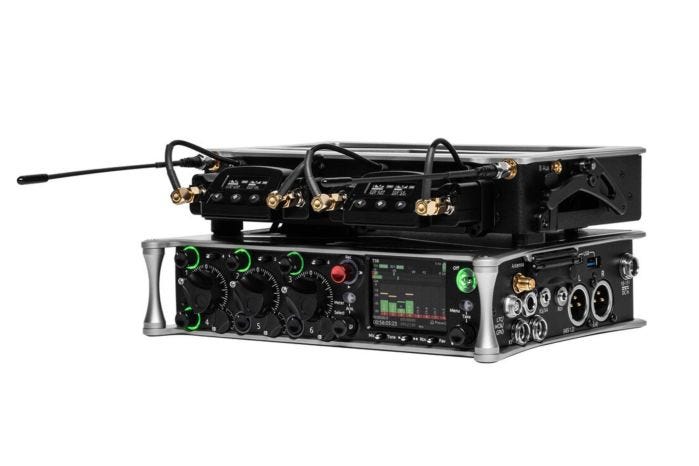

Sound Devices SL-2 Dual SuperSlot Wireless Module
Streamline your bag with the SL-2 Dual SuperSlot Wireless Module.
This two slot-in wireless receiver integration system easily mounts to the top panel of any 8-Series mixer-recorder. UniSlot and SuperSlot™ wireless receivers from a variety of manufacturers are accepted, including Audio Ltd, Lectrosonics, Wisycom, and Sennheiser. The SuperSlot protocol supports up to four channels of wireless audio per slot.
An 8-Series mixer-recorder supplies power to the SL-2 and slotted-in receivers – no external DC connector needed.
Analog or digital audio is sent from the receivers into the mixer-recorder via the expansion port, reducing messy cabling for power and audio connectivity. The SL-2 offers antenna distribution to slot-in receivers, spreading out the placement of antennas for better RF performance.
The rear panel of the SL-2 is equipped with two TA3 connectors for an additional four inputs of AES3 audio and two 4-pin Hirose DC Outputs, each supplying up to 500 mA for powering additional equipment.
Key Features:
- For Sound Devices 833, 888, or Scorpio
- Accepts 2 x UniSlot/SuperSlot Receivers
- Supports 4 x Audio Channels per Slot
- Built-In Antenna Distribution
- For Sound Devices 833, 888, or Scorpio
- Accepts 2 x UniSlot/SuperSlot Receivers
- Supports 4 x Audio Channels per Slot
- Built-In Antenna Distribution
| Product | SL-2 |
| Powering | All power supplied by host 8-series machine SL-2 idle power draw 1.3 W (without receivers or antenna) |
| Antenna | Antenna Impedance 50 ohms Antenna Powering 12V at 200 mA, menu selectable on/off Serial remote control, Wisycom-compatible for ADFA and LFA powered antenna etc. Antenna Pre-select Filters Menu selectable: Wideband/bypass (low pass filter, 1.7 GHz upper cut-off) 470-614 MHz 542-694 MHz 606-770 MHz 770-960 MHz 1240-1260 MHz |
| Input RF Attenuators | 0 to -1 8dB, in 6 dB steps, menu selectable |
| RF Outputs | Auxiliary Antenna Outputs for additional receiver |
| DC Outputs 1-2 | 500 mA max (each), 6-18 VDC passed through from host 8-series machine, depending on power source. Hirose 4-pin connector: pin 4 = +, pin 1 = ground. |
| AES Inputs | Two pairs for a total of four channels, AES-3 balanced, 110 ohms, TA-3 connectors |
| Dimensions | H x W x D 4.5 cm x 21.3 cm x 13.1 cm (1.8 in x 8.4 in 5.1 in) Weight 1.35 lbs (unpackaged) 0.61 kg (unpackaged) |
