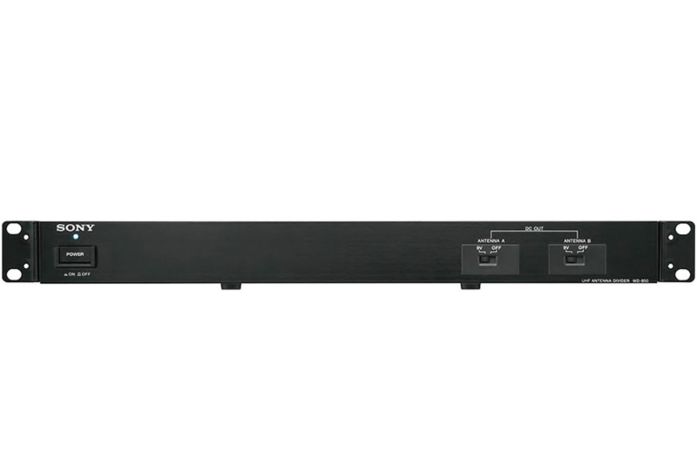

Sony WD-850A UHF Antenna Divider
Availability:In stock
Cat No.
15727
SKU
WD-850A
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£3,359.44
£2,799.53
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Sony WD-850A UHF Antenna Divider
- Provides diversity output for up to four receivers/tuner base units
- Multi-channel operation by combination with the MB-8N and WRU-8N or the MB-X6 and WRU-806B
- Cascade output can be used for an additional antenna-divider or receiver/tuner base unit
- Two pair of antenna input connectors for up to four AN-820A antennas to expand the operating area of a wireless microphone system
| Frequency range: | 470MHz - 862MHz |
|---|---|
| Channel distribution: | Inputs: 2 pairs Outputs: 4 pairs |
| Input/output impedance: | 50 |
| Cascade output: | 1 pair |
| Power supply for antenna booster (supplied from antenna input connectors): | DC 9 V/OFF switchable |
| Power consumption: | 16 W |
| Dimensions (W x H x D): | 482 x 44 x 300 mm (19 x 1 3/4 x 11 7/8 inches) |
| Mass: | Approx. 4.6 kg (10 lb 2 oz) |
| RF muting (squelch) level: | 5 dB, 10 dB, 15 dB or OFF |
| Audio output level: | -58 dBm at reference deviation |
| Audio output connector: | SMC9-4S (Sony 4-pin) (2), balanced |
