Sony DWT-P01 Digital Plug-in Transmitter - Ch. 42
Availability:In stock
Cat No.
24142
SKU
DWT-P01/E42
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£2,034.00
£1,695.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

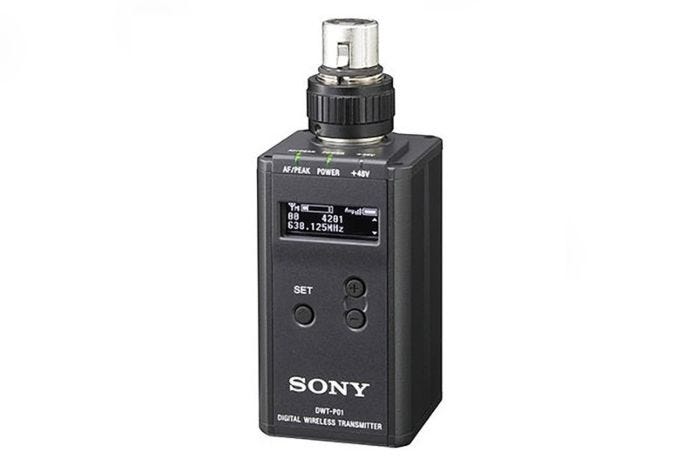

Sony DWT-P01 Digital Plug-in Transmitter - Ch. 42
Digital Plug-in Transmitter on Ch. 42 from Sony
The transmitter features 48V phantom power for condenser microphones, and digital audio processing for lower noise and longer, efficient range.
Up to three selectable output power settings are provided for maximum results and improved battery efficiency.
Two AA alkaline batteries power the DWT-P01 for up to 5 hours at the 10mW power setting. Additional features include an input attenuator, RF frequency selection, RF power output, Audio LCF frequency and a power sleep mode (in the transmitter) that can be remotely controlled from the DWR-S01D digital wireless receiver.
- Supports mic or line input
- Audio and metadata transmission operates on UHF-TV channels 42 to 51 (638 to 698 MHz)
- Transmitter settings can be remotely controlled from the digital wireless receiver (using 2.4 GHz IEEE802.15.4 communication technology)
- Compact, lightweight and built with a sturdy die-cast magnesium body
- 5 hr battery life using two AA alkaline batteries @ 10 mW power setting
- Selectable output power 1 / 10 /50mW
Key Features:
- 42/51: 638 to 698MHz
- Digital Processing
- Lightweight Die-Cast Body
- Up to 10 1/2 Hour Battery Life
- Selectable Output Power
- 42/51: 638 to 698MHz
- Digital Processing
- Lightweight Die-Cast Body
- Up to 10 1/2 Hour Battery Life
- Selectable Output Power
- Sony DWT-P01 Digital Plug-in Transmitter - Ch. 42
- Spare Battery Case
- Softcase
- USB Adapter Cable
- USB Cable
- Frequency List
Type of Transmitter UHF digital plug-in
# Of Channels: 188
Carrier Frequency: 638 to 698 MHz (TV channels 42 to 51)
Type of Input Connector: 3-pin XLR
Frequency Response: 20Hz to 20kHz
Battery Type/Approx. Life: Approximately 5 hr at 10 mW output using alkaline batteries
Power requirements:: DC 3.0V, (two AA size batteries)
RF Output: 1mW / 10mW / 50mW
Level Control: Max. -22dBu (with 0dB attenuator) mic; +24dBu line
Antenna Type: 1/4 wave
Emission: G1E or G1D
Audio Input Level: Max. -22 dBu (with 0 dB attenuator) mic; +24dBu line
Connector: XLR-3, female
Display: LED display
Compatibility: For use with DWL series wireless products operating on the same frequencies
Dimensions (WxHxD): 1 3/4 x 1 3/4 x 1 1/2" (63 x 73 x 17mm)
Weight: 9 oz including batteries
