Product Information

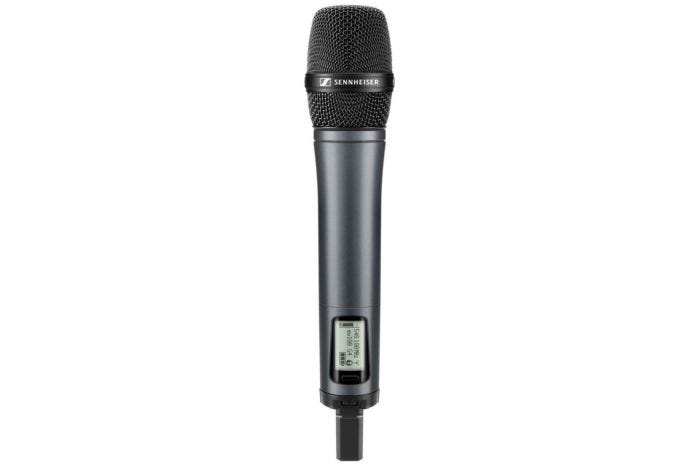

Sennheiser SKM 100 G4-GB Handheld Transmitter
Handheld Transmitter from Sennheiser
Powerful handheld transmitter with a lightweight aluminium housing for evolution wireless G4 100 Series systems.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
- SKM 100 G4 handheld transmitter
- MZQ 1 microphone clamp
- 2 x AA batteries
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
|---|---|
| Modulation | Wideband FM |
| Frequency ranges |
|
| Transmission frequencies |
|
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ≤ ±15 ppm |
| RF output power at 50 Ω | Max. 30 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 – 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) |
≥ 110 dBA |
| Total harmonic distortion (THD) |
≤ 0.9 % |
| Max. input voltage | 3 V |
| Input impedance | 40 kΩ |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 °C to +55 °C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | At nominal voltage:
|
| Operating time | Typically 8 h |
| Dimensions | Approx. Ø 50 x 265 mm |
| Weight (incl. batteries) | Approx. 450 g |
