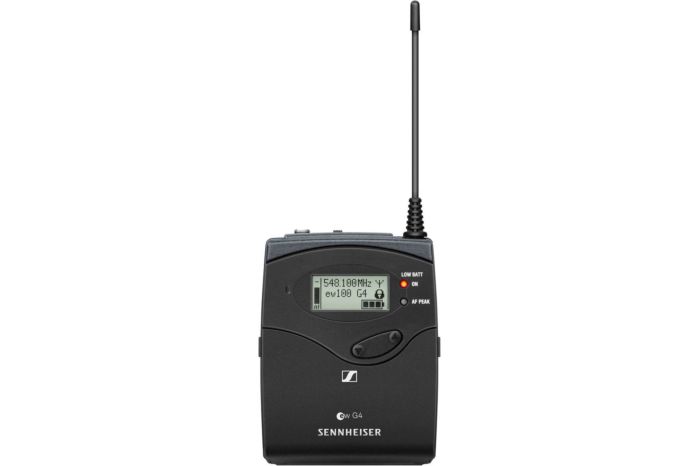

Sennheiser SK 100 G4 GB Wireless Bodypack Transmitter
Availability:In stock
Cat No.
30877
SKU
509882
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£217.36
£181.13
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
SK 100 G4 GB Wireless Bodypack Transmitter
Robust bodypack transmitter for daily use
Explore the Sennheiser SK 100 G4 GB, a robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems. Presenting easy and flexible wireless synchronization between transmitter and receiver and several incredible features.
Key Features:
- Easy and flexible wireless synchronization between transmitter and receiver
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
- Easy and flexible wireless synchronization between transmitter and receiver
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
- 1 x SK 100 G4 bodypack transmitter
- 2 x AA batteries
- 1 x Quick guide
- 1 x Safety guide
- 1 x Manufacturer declaration sheet
| SK 100 G4 | |
|---|---|
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | GB: 606 - 648 MHz |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ≤ ±15 ppm |
| RF output power at 50 Ω | Max. 30 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | ≥ 110 dBA |
| Total harmonic distortion (THD) | ≤ 0.9 % |
| Max. microphone/line input voltage | 3 V |
| Microphone/line input impedance |
40 kΩ, unbalanced / 1 MΩ |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 60 dB, adjustable in 3 dB steps |
| Overall device | |
| Temperature range | -10 °C to +55 °C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA |
| Operating time | Typically 8 h |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 160 g |
