Roland Rubix24 - 2x4 USB Audio Interface

Availability:In stock
Cat No.
40677
SKU
RO-RUBIX24
Roland

Order Now - Usually available to despatch in 3-5 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£195.60 £163.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

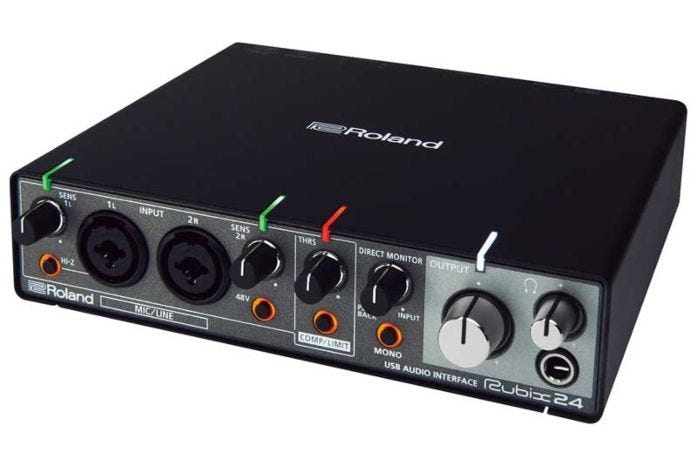

Rubix24 - 2x4 USB Audio Interface

2-IN/4-OUT, HIGH-RESOLUTION INTERFACE FOR MAC, PC AND IPAD
Rubix24 offers a perfect balance of high-fidelity sound, solid build quality, compact size, affordable price, and crucial features for today's musicians and producers. With support for high-resolution audio up to 24-bit/192kHz, Rubix24 sounds clear and defined and is carefully engineered to have extremely low noise from input to output. Its near universal USB support means it works seamlessly with Mac and PC computers, and even supports iPads, for the ultimate in portable music production and performance.

Studio-grade sound you can take anywhere
Nothing is more important than sound quality when it comes to audio interfaces. And you shouldn’t have to sacrifice sound quality to have an affordable interface that you can take with you. Rubix24 sounds clean and detailed with transparent, low noise mic preamps and supports audio resolutions up 24-bit/192kHz. It’s made of durable metal, and a lot went into its compact, low-noise design. With all the places Rubix24 can go, you’ll appreciate its extensive shielding and ground lifts, making sure you get good clean audio just about anywhere.

2 high quality mic preamps and 4 separate outputs
Rubix24’s dual microphone preamps are designed for low noise and high definition. They sound clean and transparent with plenty of headroom for capturing all the impact and detail of whatever you’re recording. And the flexible combo jacks mean you can easily connect a wide variety of sources without the need for adapters or special cables. Four individual outputs mean you can create more sophisticated routing and monitoring setups. This is useful for sending a click track to a performer, setting up a stage monitor, or routing audio to external gear.

Hardware compressor/limiter
Highly dynamic sources like vocalists and percussion instruments often need taming, especially when recording on location. Dynamics processors help ensure a good hot signal without clipping and causing unwanted distortion. Rubix24's built-on compressor/limiter provides peace of mind in the heat of a recording session.

Big, clear level indicators
Studios and stages can be dark places, and getting proper levels is critical. You want to focus on the performance, not on small, hard-to-see clip and level indicators from across the room. Rubix24 has highly visible indicators that are an integral part of its design. They clearly show if a channel has incoming signal, or if you’re going to overload, even from a distance.

Built for Mac, PC and iPad
Rubix24 is ultra-portable and ultra-flexible. It has low latency class compliant drivers for Mac and PC, so it's simple to get up and running with smooth, reliable audio performance. And it also supports iPad giving you an extremely compact system for on-location recording, on-the-go production, or live performance. It even includes Ableton Live Lite, powerful studio production and live performance software that works perfectly with Rubix24, right out of the box.

  • 2 Inputs / 4 Outputs
  • 2 Low-Noise Mic Preamps, 48V Phantom
  • Hi-Z Inputs for Guitar
  • 24-bit/192 kHz Resolution
Camera
Number of Audio Record/Playback Channels Record: 2 channels
Playback: 4 channels
Signal Processing PC interface: 24 bits
AD/DA conversion: 24 bits
Sampling Frequency AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Interface Hi-Speed USB
MIDI IN, OUT
Connectors INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)
PHONES jack: Stereo 1/4-inch phone type
OUTPUT (1L, 2R, 3L, 4R) jacks: 1/4-inch TRS phone type (impedance balanced)
MIDI (IN, OUT) connectors
USB port: USB Type B
DC 5V port: USB Type micro B
*1 Current value per channel.
*2 INPUT 1L, 3L support high impedance
Controllers SENS 1L, 2R knobs
Hi-Z switch
48V switch
THRS knob
COMP/LIMIT switch
DIRECT MONITOR knob
MONO switch
OUTPUT knob
PHONES knob
POWER SOURCE switch
LOOPBACK switch
COMP/LIMIT TYPE switch
GROUND LIFT switch
PHONES SOURCE switch
Indicator Level indicators (1L, 2R)
Level indicator (COMP/LIMIT)
POWER indicator
Hi-Z indicators
48V indicators
COMP/LIMIT indicators
Characteristics
 Nominal Input Level INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu
Maximum Input Level INPUT (1L, 2R) connectors (XLR type): +2 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu
Nominal Output Level OUTPUT (1L, 2R, 3L, 4R) jacks: -6 dBu (impedance balanced)
Maximum Output Level OUTPUT (1L, 2R, 3L, 4R) jacks: +8 dBu (impedance balanced)
PHONES Maximum Output Power 20 mW + 20 mW (L + R, 47 ohms load)
Headroom 14 dB
Input Impedance INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
INPUT (1L) jacks (1/4-inch phone type *3): 500 k ohms or greater
*3 When the Hi-Z is turned on
Output Impedance OUTPUT (1L, 2R, 3L, 4R) jacks: 2 k ohms (balanced)
PHONES jack: 47 ohms
Residual Noise Level INPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)
Dynamic Range AD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
DA block OUTPUT (1L, 2R, 3L, 4R) jacks: 109 dB typ.
Other
Power Supply Supplied from the computer via USB, DC 5V
Current Draw 500 mA
Operating System Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10
Apple Mac OS X 10.10 or later
Apple iOS 9 or later

* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the Rubix, Roland cannot guarantee that a given computer can be used satisfactorily with the Rubix based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.

Dimensions 183 (W) x 165 (D) x 46 (H) mm
7-3/16 (W) x 6-1/2 (D) x 1-13/16 (H) inches
Weight (main unit only) 1.2 kg
2 lbs 11 oz
Accessories Setup Guide
Leaflet "USING THE UNIT SAFELY"
USB cable
Ableton Live Lite Serial Number Card
* 0 dBu = 0.775 Vrms
