Neumann MA1 Automatic Monitor Alignment

Availability:In stock
Cat No.
51761
SKU
508972
Neumann

Order Now - Usually available to despatch in 5-7 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£258.00 £215.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Neumann MA1 Automatic Monitor Alignment

Your digital expert for professional monitoring quality
Neumann’s Automatic Monitor Alignment MA 1 ensures the best possible sound quality in any room – from home studios to professional control rooms. Using the individually calibrated measurement microphone your acoustic environment is analyzed in a guided process. Advanced calibration algorithms, jointly developed with the world's leading institute in audio processing, Fraunhofer IIS, guarantee an optimally adapted amplitude and phase correction for exact and reliable monitoring.

Reliable monitoring anywhere
Neumann’s Automatic Alignment is a dedicated tool for stereo sets of DSP-based KH-Line monitors with or without the KH 750 DSP/AES67 as well as two non DSP-based KH-Line monitors connected to the analog outputs of a KH 750 DSP/AES67 subwoofer. Unlike conventional correction software it is an integrated solution with novel algorithms, jointly developed with the Fraunhofer Institute for Integrated Circuits (IIS) specifically for Neumann studio monitors. No plug-in or special audio driver is required: Alignment data is stored and processed within the DSP-powered monitors resp. the subwoofer themselves. As a unique benefit, the software not only optimizes the amplitude response but also optimizes the phase. This provides highest accuracy in terms of tonality, impulse reproduction and stereo localization.

How it works
In a first step, acoustic data of the listening environment is gathered in a guided process. No special acoustic knowledge is required. Simply connect your Neumann monitors to the outputs of your audio interface or monitor controller. Additionally, your DSP-based KH-line monitors must also be connected to your computer’s ethernet port. For multiple connections, a standard ethernet switch will do.

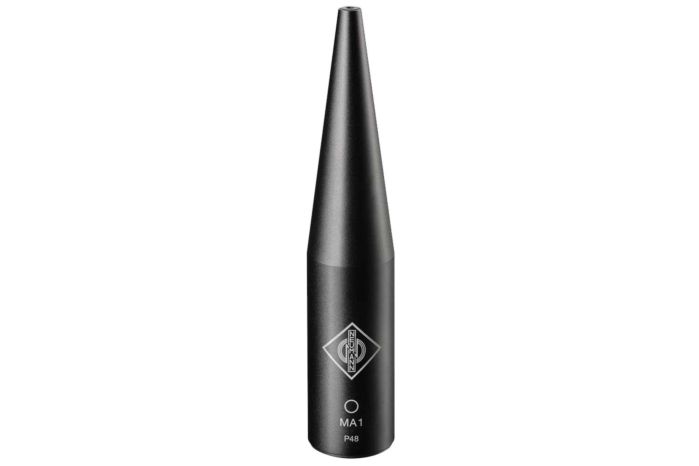

Now plug the MA 1 measurement microphone into your microphone input. This microphone was specifically developed for this software and is individually calibrated by it. The software will guide you through the measurement process.

From the measured data, the software ascertains the room’s acoustic properties. The individual correction parameters are generated according to a room-specific target curve calculated by the software. Neumann's decades of experience in calibrating monitoring systems in studio control rooms has been incorporated into this process. Of course, you can modify the target curve to your needs.

An updated Monitor Alignment Algorithm compensates room modes more precisely and effectively. Different alignments as well as complete hardware and measurement setups can be conveniently saved and recalled.

Additionally, the alignment process ensures an optimal summation in the low frequencies when a subwoofer is used. This achieves a runtime- and phase-correct combination of the monitors and the subwoofer. The often differentiated perceptible reproduction of subwoofer and monitor is thus prevented. The result is a system as if cast from a single mold.

All resulting correction parameters are stored and processed in the DSP-powered monitors. So there is nothing to worry about anymore, no plug-ins, no driver issues. And no additional cables, either: Once the alignment process is completed, the ethernet connections are not required anymore.

  • Calibration algorithms jointly developed with Fraunhofer IIS
  • For stereo setups with KH 80 DSP, KH 150 and all pairs of analog (non DSP-based) Neumann monitors using KH 750 DSP or KH 750 AES67 subwoofers
  • Individually calibrated measurement microphone
  • Room adaptive target curve
  • Phase and amplitude optimization for analog Neumann monitors
  • For Mac and PC
  • MA 1 - Measurement Microphone
  • SG 105 - Stand Mounnt
  • Automatic monitor Alignment Software (free download, see download section)
  • Quick Start Guide
  • Safety Guide
Acoustical operating principle Pressure transducer
Directional Pattern Omnidirectional
Frequency Range 20 Hz - 20 kHz
Sensitivity at 1 kHz into 1 kohm 30 mV/Pa -30 dBV +/- 3 dB uncalibrated | 30 mV/Pa -30 dBV +/- 0,5 dB Calibrated (via software)
Rated Impedance 50 Ohms
Rated load impedance 1000 Ohms
Equivalent noise level, CCIR 1 39 dB
Equivalent noise level, A-weighted 2 27 dB-A
Maximum SPL for THD 0.5% 3 132 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) 4 55 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 5 67 dB
Maximum output voltage 10 dBu
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Current consumption (P48, IEC 61938) 3 mA
Matching connector XLR3F
Weight 37 g
Diameter 23 mm
Length 117 mm
Operating conditions 0 °C - +70 °C (32 °F - 158 °F); max. 90 % at +20 °C
Transport/storage conditions −20 °C - +70 °C (−4 °F - 158 °F); max. 90 % at +20 °C
