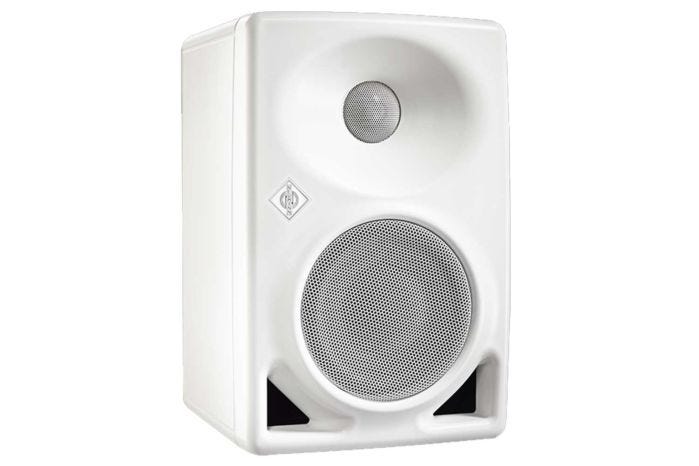

With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference level reproduction to any environment. Even with its compact design, it has extraordinary reserve capacity as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design and sophisticated material selection.
Free field frequency response ±6 dB | 53 Hz … 21 kHz |
Free field frequency response ±3 dB | 57 Hz … 21 kHz |
Free field frequency linearity deviation between 100 Hz and 10 kHz | ± 0.7 dB |
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) | <20 dB(A) SPL |
Sine wave output with a THD < 0.5 % at 1 m in half space | 90 dB SPL (>200 Hz) |
Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) | 108.8 dB SPL |
Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) | 102.8 dB SPL |
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) | 96.8 dB SPL |
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions | 104 dB(C) SPL |
Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced | ±0.26; ±0.23; ±0.17 dB |
Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range) | 93 dB(C) SPL |
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer) | 100 dB(C) SPL |
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range) | 88 / 93 dB(C) SPL |
Dynamic range A-D | 114 dB(A) |
Dynamic range A-D-A | 111 dB(A) woofer; 112 dB(A) tweeter |
Dynamic range D-A | 114 dB(A) woofer; 117 dB(A) tweeter |
Latency | 2 ms (A-D-A linear phase) |
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer) | 91 / 96 dB(C) SPL |
Display Brightness | via Neumann.Control |
Bass Extension (Hz, -6 dB) | 53 |
Maximum output level (dB SPL) | 108.8 |
Max. Listening Distance up to (m) | 3 |
Analog input(s) | XLR / 6.3 mm (¼”) Jack: analog electronically balanced |
Analog input impedance | 14k Ohms |
Max. input level | +24 dBu for 94 dB SPL setting+18 dBu for 100 dB SPL setting+10 dBu for 108 dB SPL setting+4 dBu for 114 dB SPL setting |
Common mode rejection ratio (CMRR) | >56 dB @ 15 kHz |
Volume control | via Neumann.Control software |
Volume control range; resolution | 0 … -∞ dB; 0.1 dB |
Digital converter: resolution; design | 24-bit DAC; Δ∑ |
Digital converter: sampling rate | 48 kHz |
Digital internal sampling rate | 48 kHz |
Delay: User adjustable delay range | 0 … 70 ms |
Delay: Resolution: time; distance | 0.1 ms; 3.44 cm (1 3/8”) |
Delay: Max. frames Audio-video synchronisation (lip sync) | 1.75 (40 ms frames); 2.1 (33 ms frames) |
Delay: Time-of-flight maximum distance | 24 m (79 ft) |
Input gain control (sensitivity) | 0 dB ... -15 dB |
Output level control (output level in 1 m based on 0 dBu input level) | 94; 100; 108; 114 dB SPL |
Equalization: Low-Mid | 0; -1.5; -3; -4.5 dB |
Controller design | Digital; active |
Crossover frequency | 1.8 kHz |
Crossover slope | 48 dB/oct; 8th order with phase correction |
Equalization: via Neumann.Control software | 8 x full parametric IIR + low / high shelf global balance |
FIR phase correction | Linear phase (170 Hz ... 16 kHz; +/- 45°) |
Protection circuitry | Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers |
Infrasonic filter: frequency; slope | 61 Hz; 12 dB/oct. |
Remote control | Neumann.Control software via an RJ45 connector carrying standard IP data |
Display: On; Normal Operation | Neumann logo “White” |
Display: Identification | Neumann logo “Rosé” |
Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute | Neumann logo “Red” |
Output power woofer amplifier (THD+N with limiter deactivated: 10%) | 120 W |
Output power tweeter amplifier (THD+N with limiter deactivated: 10%) | 70 W |
Output power woofer amplifier (THD+N with limiter deactivated: 0.1%) | 90 W |
Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%) | 50 W |
Mains Power Supply: input voltage; frequency | 100-240 V; 50/60 Hz |
Power consumption (230 V / 100 V): Standby | <330 / <50 mW |
Power consumption (230 V / 100 V): Idle | 9 / 8 W |
Power consumption (230 V / 100 V): Full output | 180 W |
In-rush current (Peak) | 20 A |
Standby | Disabled; 90 mins (default); user defined in software |
Cabinet material | Composite polycarbonate |
Cabinet surface finish; color (front / back) | Painted, White (RAL 9016) |
Operating conditions | +10° C to +40° C (+50° F to +104° F); <75% RH; non-condensing |
Transport/storage conditions | -25° C to +60° C (-13° F to 158° F); <90% RH; non-condensing |
Woofer | 100 mm (4") with protecting black metal grille |
Tweeter | 25 mm (1") with protecting black metal grille |
Mounting points | 2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm (5/8”) |
Product dimensions (height x width x depth) | 233 x 154 x 194 mm (9 1/8" x 6" x 7 5/8") |
External net volume | 6.7 liters |
Packed dimensions (height x width x depth), mm (inches) | 345 x 277 x 243 mm (13 5/8" x 10 7/8" x 9 5/8") |
