Datavideo DAC-90 SDI Audio De-Embedded Box
Availability:In stock
Cat No.
17637
SKU
DATA-DAC90
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£340.00
£283.33
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

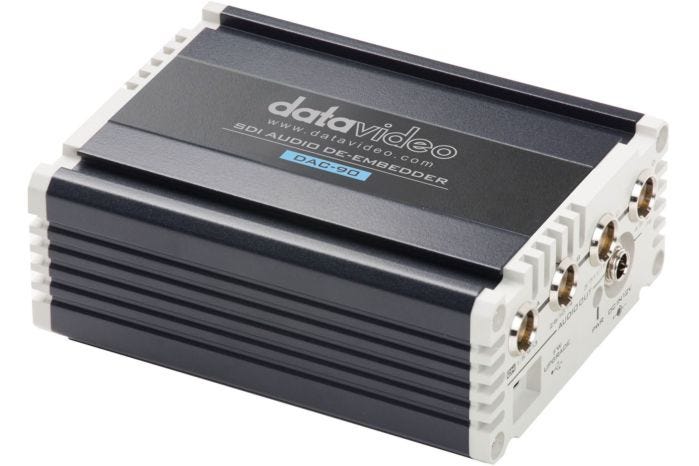

Datavideo DAC-90 SDI Audio De-Embedded Box
Allows users to de-embed 16 analogue audio signals (4 at a time) from SDI video signal
The DAC-90 is an audio de-embedder box with useful function that allows users to de-embed 16 analogue audio signals (4 at a time) from SDI video signal.
It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides 4 mini XLR audio connectors for outputting analogue audio to audio devices such as monitors, recorders, switchers, and audio mixers.
The Audio box also has SMPTE and EBU switchable settings and the De-embedded audio signal can be assigned by using the built-in DIP switches.
Key Features:
- De-Embed Audio from SDI Signal
- Automatically detects 3G, HD, SD signal
- 4 x Analogue Mini XLR Audio outputs
- Assignable De-embedded audio signal
- Audio level indicator display
- SMPTE and EBU Audio level switchable
- Control via DIP Switches
- De-Embed Audio from SDI Signal
- Automatically detects 3G, HD, SD signal
- 4 x Analogue Mini XLR Audio outputs
- Assignable De-embedded audio signal
- Audio level indicator display
- SMPTE and EBU Audio level switchable
- Control via DIP Switches
- 1x DAC-90 product
- 1x AD Switch DC 12V
- 2x Mini XLR to male XLR cable
- 1x Thank You Card
| SDI Video Input | 3G/HD/SD SDI x1 |
|---|---|
| SDI Video Output | 3G/HD/SD SDI x1 (Re-clocked Loop through) |
| Analog Audio Input | N/A |
| Analog Audio Output | Mini XLR (Balanced) x4 |
| Indicator | Power LED x1 Audio Level LED: 4 rows |
| Updates and Configuration | Mini USB x1 |
| Audio Format Selection | SMPTE, EBU |
| Gain | N/A |
