The 1RU AD-200 6 Channel Audio Delay/Mixer with Level Adjustment from Datavideo is an integration of 6 channel audio delay with a matrix mapping function of 4 channel outputs audio mixer.

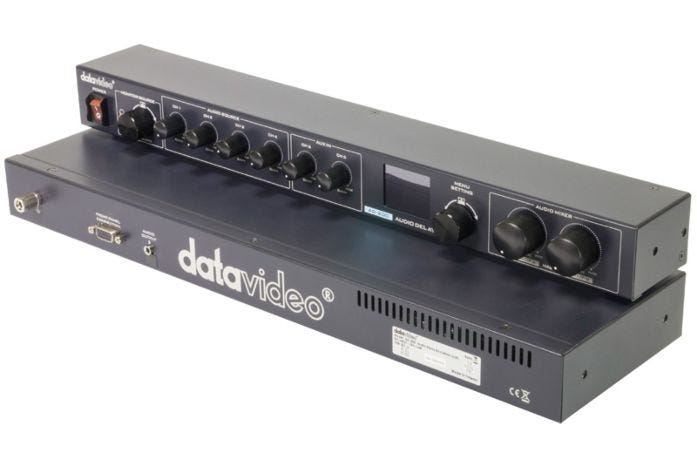

The AD-200 is comprised of two separate parts: the main unit and the control unit. The two parts are 1RU each and can be easily installed on an OB Van or customized rack.

• 4 Channel balanced audio inputs and 4 channel balanced audio outputs
• 2 Channel AUX inputs selectable of Mic/Line level and 2 channel unbalanced-audio outputs
• 6 Channel audio mixer and matrix router to 4 channel audio outputs
• Support up to 3sec audio delay adjustment for each input channel
• Audio level adjustment of each input

Key Features:

• 4-CH balanced audio inputs, 2-CH AUX inputs selectable of Mic/Line level
• 4-CH balanced audio outputs, 2-CH unbalanced-audio outputs
• Support up to 3sec audio delay adjustment for each input channel
• Audio level adjustment of each input
• 6-CH Audio mixer and matrix router to 4-CH audio outputs

• 4-CH balanced audio inputs, 2-CH AUX inputs selectable of Mic/Line level
• 4-CH balanced audio outputs, 2-CH unbalanced-audio outputs
• Support up to 3sec audio delay adjustment for each input channel
• Audio level adjustment of each input
• 6-CH Audio mixer and matrix router to 4-CH audio outputs

• Datavideo AD-200 6-Channel Audio Delay/Mixer

AUX Section:

Impedance: 2 kOhms / 3 kOhms
Connector: 2 x 3-pin XLR Female
Mic Gain Range: 40 dB / 60 dB
Line Gain Range: off to 12 ±3 dB
THD+N: 0.01 %
Signal to Noise Ratio: 80 min dB
Frequency Response: 20 Hz - 20 kHz ±3 dB

Audio Input
Connectors:

• 4 x 3-pin XLR female
• 2 x RCA, unbalanced (L/R)

Input Impedance: 25 kOhms
Gain Range: off to 12 ±3 dB
THD:+N 0.01 %
Frequency Response: 20 Hz - 20 kHz ±3 dB
Signal to Noise Ratio: 80 dB
Impedance: 15 kOhms

Audio Output
Connectors:

• 4 x 3-pin XLR female
• 2 x RCA, unbalanced (L/R)

Impedance: 65 Ohms
Gain Range: off to 12 dB
Output Level: 23 dBu

Headphones
Connector: 3.5 mm phone jack
Signal to Noise Ratio: 75 dB
THD:+N 0.01 %
Frequency Response: 20 Hz - 20 kHz (±3 dB)

General
Audio Delay: 0-3 sec for audio inputs
Connectors:

Main Unit:

• 15-pin Sub-D, Front panel
• 9-pin Sub-D, RS232 remote
• 3.5 mm phone jack, audio output

Control Unit:

• 15-pin Sub-D, Front panel
• 3.5 mm phone jack, audio input

Phantom Power: 48 VDC
Power Consumption: 12 V / 19 W
Dimensions:

• Main Unit: 5.8 x 17.3 x 1.7" (147.0 x 440.0 x 45.4 mm)
• Control Unit: 3.5 x 17.3 x 1.8" (90.5 x 440.0 x 47.5 mm)

Weight:

• Main Unit: 4 lb (1.8 kg)
• Control Unit: 2.4 lb (1.1 kg)
