£405.60
£338.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

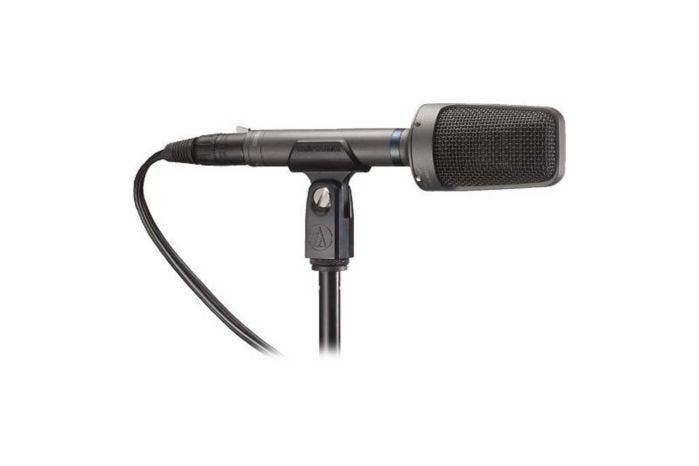

Audio Technica AT8022
Ideal for video camera-mount use, stereo field recording, interviews and home recording, Audio-Technica's versatile AT8022 stereo condenser offers a compact housing and the pristine sound quality of a live sound field. Its coincident capsule configuration produces an X/Y stereo image in a small housing. The microphone is supplied with two cables for use with either pro or consumer gear. It offers switchable low-frequency roll-off and the convenience of battery or phantom power.
In symmetrical mode the Y-shaped cable has two XLR connectors that allow for phantom powering the microphone. In asymmetrical mode, it requires the use of an AA battery and a 3.5mm mini-jack output connector. The AT8022 is thus the most professional broadcast microphone for use on camera, digital recorder or DSLR.
The AT8022 is equipped with two 21mm diameter capsules mounted in a 180° parallel back-to-back configuration. This proprietary stereo principle developed by Audio-Technica offers a fairly wide stereo angle (instead of two capsules at 90°) which saves space. The AT8022's diaphrahms are doubly embossed: a hexagonal shape and a relief print. By using this manufacturing principle patented by Audio-Technica, the stability of the membrane is thereby increased, and unwanted noise is kept at bay. Robust, all metal construction, ideal for use in professional broadcast environments.
- Unique innovative capsule configuration produces accurate stereo image in smaller housing
- Stereo 120 ° opening angle
- "Double Diaphragm Wave" Capsule structure
- Very low noise level
- Highly versatile, the AT8022 can be used in the studio or on location
- Its compact, lightweight design is perfect for video camera-mount use as well as for stereo field recording, interviews and home recording
- Switchable low-frequency roll-off 80 Hz with a slope of 18 dB / octave
- Reproduces a very natural stereo image
- Operates on battery or phantom power - for use with pro or consumer equipment
- Includes two cables: one balanced (two 3-pin XLRM-type connectors at output); one unbalanced (3.5 mm TRS at output)
- 1xAT8022 X/Y Stereo microphone
- 1x AT8405a stand clamp for 5/8"-27 threaded stands
- 1x Windscreen
- 1x Battery
- 1x Soft protective pouch
| Element | Fixed-charge back plate permanently polarised condenser |
|---|---|
| Polar Pattern | X/Y Stereo |
| Frequency Response | 20 - 15,000 Hz |
| Open Circuit Sensitivity | Phantom: -38 dB (12.5 mV) |
| Battery: -38 dB (12.5 mV) | |
| Impedance | Phantom: 250 ohms |
| Battery: 300 ohms | |
| Maximum Input Sound Level | Phantom: 128 dB SPL, 1 kHz at 1% T.H.D. |
| Battery: 120 dB SPL, 1 kHz at 1% T.H.D. | |
| Channel Balance | < 2.5dB |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Switches | Battery On/Off; Flat, roll-off |
| Dynamic Range | Phantom: 109 dB, 1 kHz at Max SPL |
| Battery: 101 dB, 1 kHz at Max SPL | |
| Signal-to-Noise Ratio | 75 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical (each channel) |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.7 mA / 700 hours typical (alkaline) |
| Weight | 247 g (8.7 oz) |
| Dimensions | 186.0 mm (7.32") long, 47.6 mm (1.87") head diameter 21.0 mm (0.83") maximum body diameter |
| Output Connector | Integral 5-pin XLRM-type |
| Cable | Balanced: 2.0 m (6.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end; |
| Unbalanced: 0.6 m (2.0') long stereo cable with 5-pin XLRF-type connector at microphone end and 3.5 mm TRS connector at output end |
