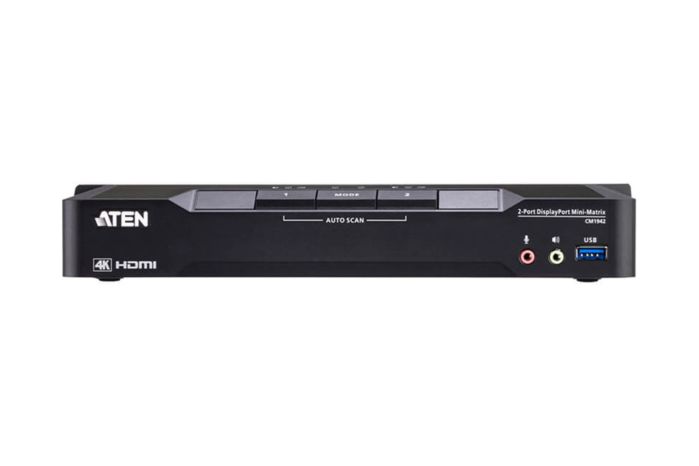

ATEN 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch

ATEN 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch

With hybrid working evolving to become the standard in the new normal, the key to tackling challenges is to elevate multitasking abilities. When it comes to performing multiple tasks simultaneously, ergonomics is what assures productivity.

And when communicating with dispersed remote teams, effective collaboration tools are crucial. Re-imagine your workspace with the CM1942 – a future-proof mini matrix KVM switch featuring flexible and boundless KVM switching between two computers/displays to maximize workstation efficiency. Incorporating speedy peripheral data sharing, audio mixer, multi-screen efficiency and hotdesking agility, the CM1942 promotes a productive yet better normal with streamlined desktop workflows for both desktop tasks and collaborative work.

Exceptional 4K Audiovisual Performance
The CM1942 empowers your desktop operations with connectivity to two DisplayPort computers and two HDMI displays, providing a remarkable user experience with exceptional 4K audiovisual enhancement.

Dual-Display Setting to Facilitate Matrix KVM Switching
The CM1942's dual-display setting simplifies KVM switching in a 2x2 computer/monitor matrix. The main and extended desktops of either computer with the current KVM focus can be displayed over two monitors. Likewise, each computer’s content can be displayed on either monitor separately in a crossover configuration as well, regardless of the KVM focus.

Intuitive Boundless Switching to Expedite Desktop Operations
The CM1942 enables quick switching between two computers by allowing the mouse cursor to move across the screen borders onto another screen instantaneously, for easy and straightforward switching between sources.

Network Separation
With agile KVM switching, operations on each PC can be undertaken independently or collaboratively over dual monitors, while network settings with each PC can be different (e.g. Internet and LAN) to enable separated workflows with enhanced data security for transactions that need to be safeguarded and without vulnerabilities, such as in banks or trading centers.

Audio Mixer Mode to Enhance Situational Awareness
Sound can serve as a helpful alert for better situational awareness while multitasking. With the Audio Mixer mode in place, the audio and sound coming from both computers can be mixed up in one output during all desktop operation, regardless whichever computer you’re working on at the moment.

Flexible Port Selection
Port switching with the CM1942 is flexible and you can choose from pushbuttons, hotkeys, mouse and the remote port selector, whichever works best for you and your workflows.

Peripheral Sharing
Media and data sharing between computers is fast and effortless via plug-n-play connection (e.g. hard drive, flash drive, printer, etc) to the USB hub on the KVM switch.

• 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch
• One dual-view USB / HDMI console controls two DisplayPort computers and two USB 3.1 Gen 1 peripherals
• Two PC Operation Modes:
• Single PC Mode – allows content of the PC with current KVM focus to be displayed over both monitors
• Dual PC Mode – allows content of two PCs to be displayed separately on two monitors regardless of the KVM focus
• Supports superior video quality – resolutions up to 4K DCI (4096 x 2160 @ 60 Hz)
• Boundless Switching – allows the mouse cursor to move across screen borders for quick switching between video sources
