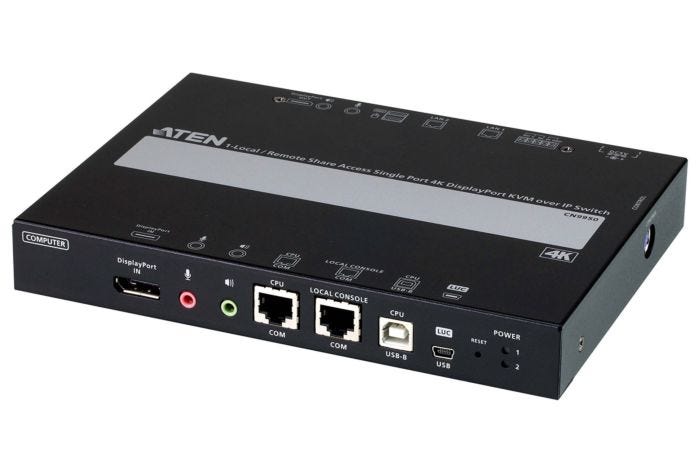

ATEN 1-Local/Remote Share Access Single Port 4K DisplayPort KVM over IP Switch

ATEN 1-Local/Remote Share Access Single Port 4K DisplayPort KVM over IP Switch

The CN9950 provides over-IP capability for remote access to a dedicated PC/server via a direct BIOS-level, hack-proof network connection, and expands on previous models with increased visual excellence, up to 4K DCI resolution, by utilizing an FPGA graphics processor. It allows for secured remote access to audio, video, and virtual media, facilitating instant file sharing and system updates over the network without the need for any extra software installation or configuration.

The CN9950 KVM over IP switch is ideal for global organizations and companies with several office locations by bridging local and remote workplaces with a seamless connection without any restriction or loss in productivity. It is a secure and practical solution to help keep businesses afloat during a downturn or global crises.

Security Guarded Remote Access, Wherever You Are
The CN9950 provides a direct BIOS-level connection to the dedicated PC/server to allow for instant remote access from different locations without requiring any extra software installation or configuration.

Dual LAN / Power Redundancy
The CN9950 is equipped with dual LAN / power connectivity that strengthens system reliability by maintaining uninterrupted operations during any contingency. Power connectors are fastened with screw locks to ensure robust power failover, and power status can be identified easily via the LED indicators.

Virtual Media Support for Prompt System Updates
The CN9950 enables authorized virtual media support to run file applications and software installations over the network, and this is especially useful for diagnosing and troubleshooting network and BIOS issues, as well as performing software updates and patches to keep your system up-to-date.

DI and Relay Connectivity for Contingency Approach
The CN9950 comes built in with a 5-pin control terminal for a DI input connection for system alerts (from a thermometer, humidity/door sensor), as well as a relay terminal for a virtual power-on feature that remotely reboots a hung or crashed PC/server to ensure constant system availability for mission-critical applications.

• 1-Local/Remote Share Access Single Port 4K DisplayPort KVM over IP Switch
• Supports DisplayPort resolution up to 4K DCI (4096 x 2160) @ 30 Hz
• Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
• Dual power supply to ensure seamless connectivity
• Up to 64 user accounts – up to 32 users can simultaneously share control
