Product Information

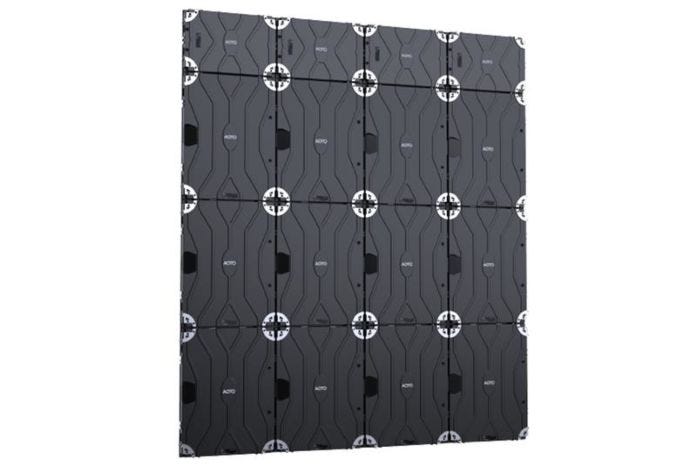

Aoto U2.8 UxR Series
The UxR series is designed for virtual live streaming and virtual production. The screen surface is equipped with nano-coating technology, providing enhanced dustproof and waterproof capabilities, which significantly extend the product's overall lifespan. It supports various arc splicing options, catering to a wide range of shooting requirements.
Low Reflectivity
Low reflectivity avoids the interference from other disturbing light, making the more vivid and real camera shooting.
Arc Installation
The product supports smooth inner curve installation between the range of 0°-10°
High Contrast Ratio
High contrast ratio makes U series with brighter spot at bright zone, darker spot at dark zone, enhancing total color performance no matter any environment.
7680 High Refresh Rate
UxR series provides 7680 Hz refresh rate and 144 Hz frame rate, making the display quality more stable when the image is captured by camera.
Tougher Protection
U series applies a mask design to better protect the LED lamp beads, also with better dust proof and waterproof capabilities, significantly enhancing the product life.
Flexible & Fast Installation
The strong cabinet and its intelligent structure, making UxR series can be installed quickly on set, significantly reducing time and cost.
- Pixel Pitch: 2.3mm/2.8mm
- Half Cabinet Customization
- 7680Hz refresh rate
- Arc Installation
- Magnetic Front Maintenance
- Support Inner Arc 0°-10°
| Model | U2.8 |
|---|---|
| Pixel Pitch | 2.85 mm |
| Type of LED | SMD |
| Pixel Density | 122,500 dots/m² |
| Pixel Composition | 1R 1G 1B |
| Cabinet Size | W:480mm, H:640 mm, D:63 mm |
| Cabinet Resolution | 168(W) x 224(H) |
| Cabinet Weight | 7.1 kg |
| Cabinet Material&Color | Die-casting Aluminum，Black |
| Curve | Inner Arc |
| Brightness | 1,000 nits |
| Viewing Angle | H：160°±10°,V:160°±10° |
| Scan Rate | 1/14 |
| Refresh Rate | 7,680 Hz |
| Contrast Ratio | 5,000:1 |
| Input Voltage | AC100V to AC240V,50 or 60 Hz |
| Max Power | 150 W/Cabinet; 488 W/m² |
| Average Power | 50 W/Cabinet; 163 W/m² |
| IP Rating | Indoor |
| Maintenance | Front |
| Lifespan | 100,000 Hours |
| Operating Environment | Temperature: -10°C－40°C / Humidity：10% - 80% RH |
