Product Information

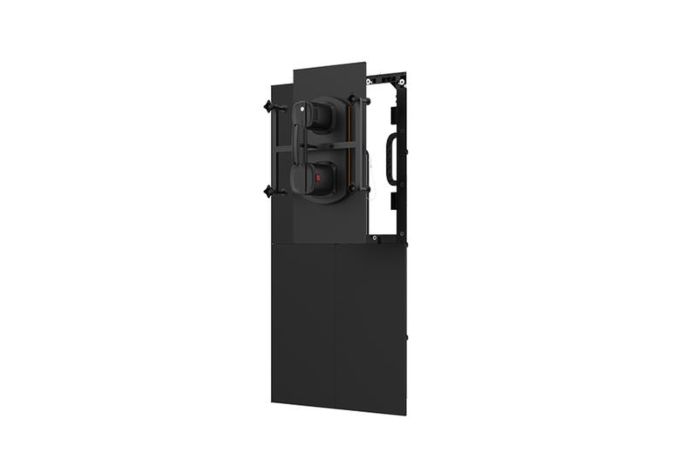

Aoto M5.8H MXH Series
MXH series is large-sized LED panel with a thin and light body, especially designed for rental applications. High set-up flexibility that ceiling or hanging Configurations are both achievable makes it the ideal choice for stage. Features wide viewing angle (beyond 170°), high brightness (6000nits) and wide colors (DCI-P3), MXH series perfectly meet the requirements of film and television shooting and showing the remarkable product value.
Superb display quality
High brightness (6000nits), high refresh rate (7680hz), wider viewing angle (180°).
Support front and rear maintenance
The special design of modules has solved the common issue related to the difficulty of replacing module during the maintenance, which significant increases the efficiency of maintenance and cost saving.
Support ceiling
The MXH series is able to reach inner and outer arc splicing.
Connection plate quick lock installation
This feature enables MXH series to be easily installed at the ceiling, also it ensures the front and rear maintenance to reach the fast assembly and maintenance
Lightweight
MXH series has a thin thickness of cabinet; the adopting of the all cast aluminum framework makes the lighter weight of its cabinet.
- Pixel Pitch: 3.75mm/4.8mm/5.85mm
- Big-Size Panel (960*480mm)
- Lightweight
- AOTO Full Viewing Angle Technology
- High Brightness (6000nits)
- DCI-P3 Color Gamut
- Ceiling Installation
| Model (Indoor) | M5.8H |
|---|---|
| Pixel Pitch | 5.85 mm |
| LED Type | SMD 3 IN 1 |
| Pixel Density | 29,584 dots/㎡ |
| Pixel Configuration | 1R 1G 1B |
| Module Resolution | 41（W）x 82（H） |
| Module Size | Width：240 mm; Height：480 mm |
| Cabinet Resolution | 82（W）x 164（H） |
| Cabinet Size | Width：480 mm，Height：960 mm，Depth：92mm |
| Cabinet Area | 0.4608 m² |
| Cabinet Weight | 9.5±0.5 kg |
| Cabinet Material and Color | Aluminum Alloy, Black |
| Calibrated Brightness | 6000 nits |
| Viewing Angle | Horizontal: 160°±10°; Vertical: 160°±10° |
| Color Processing Depth | 20 bit |
| Refresh Rate | 7680 Hz |
| Contrast Ratio | |
| Input Voltage | AC100 V to AC240 V，50 or 60 Hz |
| Maximum Power | 200 W/cabinet；435 W/m² |
| Average Power | 90 W/cabinet；195 W/m² |
| IP Rating | IP30 |
| Maintenance | Front & Rear |
| Operating Environment | Temperature： -10℃－40℃/ Humidity：10% - 80% RH |
