Adastra Touch Remote Wall Plate for RZ45 Audio Matrix
Availability:In stock
Cat No.
65619
SKU
ADA953.050
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£42.56
£35.47
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

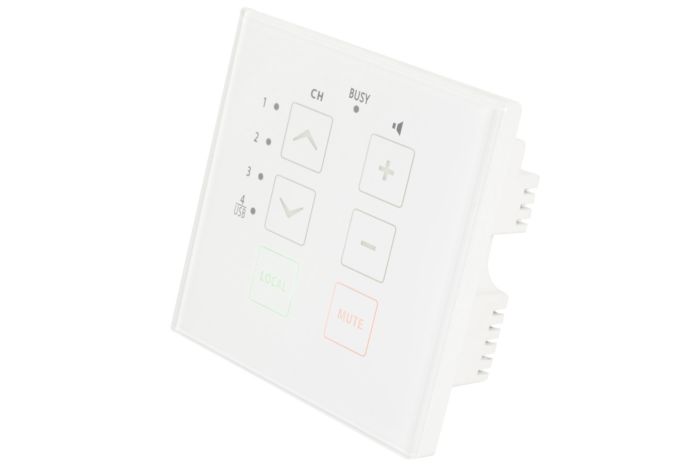

Adastra Touch Remote Wall Plate for RZ45 Audio Matrix
Remote control for the RZ45 audio matrix system built into a single gang 86 x 86mm wall plate. The illuminated acrylic touch-operated surface selects between 3 stereo audio sources or the inbuilt media player on the RZ45 and controls the output level to its zone.
Connection by standard network cable carries signal and power to the TR86 panel up to 100m away from the RZ45 or signal up to 1km away with a separate 24Vdc power input. Additionally, a mono line level signal can be wired internally to the panel via screw terminals to provide an independent local audio source. Up to 5 TR86 remote panels may be used with a single RZ45 unit controlling up to 5 independent zones.
- Hygienic acrylic touch operated surface
- Illuminated with colour coded indicators
- Easy installation via RJ45 connection
- Up to 5 remote panels per RZ45 audio matrix
- Up to 100m powered directly from RZ45 or 1km with +24V power
