Product Information

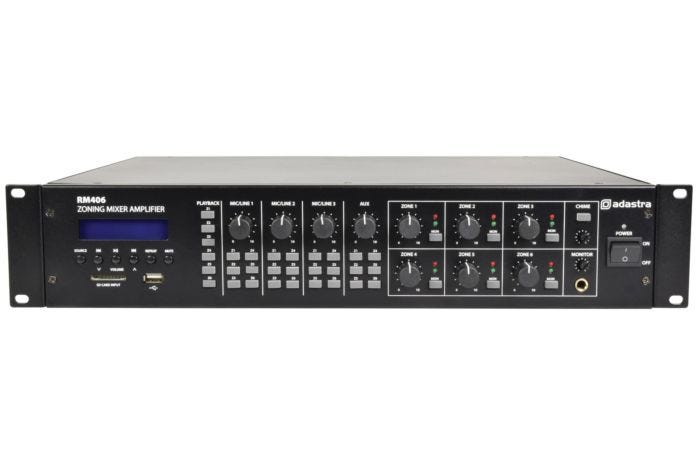

Adastra RM406 100V Mixer Amplifier 6 x 40W + USB/SD/FM/Bluetooth
Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently.
Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.
- Integral USB/SD/FM audio player
- Bluetooth with programmable ID
- 100V or 4/8 Ohms operation
- 6 independent output zones
- 3 mic/line and 1 auxiliary input
- Mic priority and chime functions
- Switchable +20V phantom power
- 24V mute contacts
- Monitor headphones output
- RM406 Zoning mixer-amplifier
- Rack-mounting brackets
- IEC mains lead(s)
| Power supply | 170-264Vac, 50Hz (IEC) |
|---|---|
| Power output | 6 x 40W rms |
| Amplifier : construction | Class D + transformer outputs |
| Audio source | USB/SD/FM/BT audio player |
| Inputs | 3 x mic/line (XLR/jack), auxiliary 2 x RCA |
| Zone outputs: line | 6 x RCA (mono) |
| Zone outputs: speaker | 6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com |
| Phantom power | +20V switchable to each XLR |
| Monitor outputs | 6.3mm stereo phones, 2 x RCA line |
| Mute | +24V relay contacts |
| THD | <0.76% @ 1kHz |
| Input impedance | 1k Ohms (mic/line) |
| Input sensitivity | -11dB (line), -46dB (mic) |
| SNR | 84dB (line), 82dB (mic) |
| Bluetooth version | 5.0 |
| Frequency response | 100Hz - 24kHz |
| Dimensions | 433 x 89 x 302mm |
