The breakthrough Accsoon CineView Master 4K wireless system is all about innovation. With wireless 4K 60P video, 25ms latency, High-Performance A/V Processor with 8K capabilities, HDMI, HD-SDI and MFi video, it offers best-in-class performance and includes a series of world firsts:
- The first Tri-Band Wireless Video System (6GHz, 5GHz and 2.4GHz) using Accsoon’s new transmission protocol and patented transmission technology for a strong and stable connection.
- The first 4K 60P Wi-Fi based video transmission system. Extended range allows operation up to 2.5 kilometers/1.5 miles away. Dynamic Frequency Selection (DFS) is supported.
- The first Wi-Fi video transmission system with less than 25ms latency - breaking the 30ms latency barrier.
- The first wireless system with the ability to add a cabled iPad or iPhone for monitoring at the same time as sending wireless video.
With MFi video, the CineView Master 4K uses Accsoon’s innovative SeeMo technology to access professional monitoring and streaming via cable from the transmitter (TX) unit. Importantly this also opens up camera-to-cloud connectivity with Frame.io. Quickly share and distribute 4K video while you shoot, or record footage to quickly review.
The first in a new generation of Accsoon systems, using a brand new High-Performance A/V Processor with 8K capabilities. This superfast new platform offers a massive 400% increase in processing capabilities. It is so powerful that the chipset has the future capability to process 8K video (the CineView Master is a 4K only product). The CineView Master 4K also uses the new Accsoon RTMS 4.0 proprietary protocol for its transmission which is even more robust and better optimised than before.

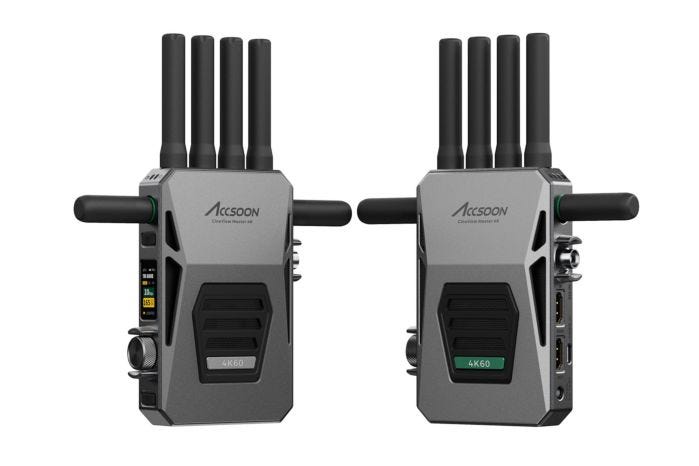

The physical design of the CineView Master 4K TX and RX is also new with a focus on high efficiency, intelligent heat dissipation and greater modularity. The transmitter has HD-SDI and 4K HDMI 2.0 inputs, plus a HDMI 2.0 output for 4K loop out. The receiver has both 4K HDMI and HD-SDI outputs. Both TX and RX can be powered using NP-F type batteries or via DC barrel connector.
As with other CineView models, a single TX can transmit wirelessly to up to 4 units or devices at the same time – whether that be CineView Master 4K RX units, iOS or Android devices, or a combination. An additional iPhone or iPad can be cabled to TX to create a 5th attached device.
Never before has a Wi-Fi system had 25ms latency or been able to handle 4K 60, and never before has a system allowed the user to connect an iPad or iPhone directly to the transmitter for professional monitoring and app integration. Put together, all these features in a single system redefine on-set video, opening up exciting new ways for professionals to collaborate.
Uncompromised 4K 60P video
Accsoon has long been a leading innovator in wireless video. Now for the first time, it is bringing a true 4K 60P to Wi-Fi based wireless video systems. This fully end-to-end 4K solution offers 4K on both wireless and wired connections. It allows:
4K60 Input
4K60 Loop-out
4K60 Encode
4K60 Decode
4K60 Output
4K60 Transmission
4K60 Record
4K60 Livestream
Next-Gen Multi-frequency Wireless Technology
Accsoon's Tri-Band 6GHz, 5GHz and 2.4GHz transmission technology is a quantum leap forward. Using patented technology it promises greater robustness, faster connection times, lower latency, and the ability to manage multiple connections gracefully.
When compared to rival systems the CineView Master 4K offers three times greater interference resistance.
If the TX unit is set at 4K, the RX unit can be set to either 4K or HD depending on the user’s preference. When using multiple RX units these can individually be set at either 4K or HD and do not have to match resolution. This enables different users on-set to tailor the output to the exact needed resolution of their monitor or device, e.g. if connection to a HD only production monitor is required at the same time as a larger 4K screen, or a 4K switcher.
The new 6GHz frequency is the cutting edge of wireless technology. With 14 available channels it offers higher speeds with less interference. In congested wireless environments with a lot of competing devices, the CineView Master 4K is better able to achieve optimal performance. This is all made possible on the device by the extreme power of the High-Performance A/V Processor with 8K capabilities.
Ideal for busy wireless environments with a number of connected devices. The CineView Master 4K priority is to optimally balance speed and range.
Best in Class Latency
The CineView Master 4K significantly reduces latency from input to output to only 25 ms at 1080p 50/60. This near real-time performance is faster than rival wireless systems and directly addresses the demands of cinematographers, camera operators and assistants. Latency in 4K resolution is an impressive 35ms.
This is all made possible by the High-Performance A/V Processor and the Accsoon RTMS 4.0 proprietary protocol.
2.5 km/1.5 mile Extended Long Transmission Range
Distance is no barrier to the the CineView Master 4K. It can achieve a 2.5 km/1.5 mile transmission range thanks to the patented Accsoon simultaneous Tri-Band technology. Not only does it work over vast distances it does so with incredible stability, pushing the limits to make it the highest performing Accsoon system to date.
Transmitter | |
---|---|
A/V Processor |
8K High Performance A/V Processor
|
Protocol |
Accsoon Proprietary RTMS 4.0 Protocol
|
Video Input | HDMI, 3G SDI |
Video Output | HDMI Loop-Out |
USB-C Video Output to iOS |
√ |
SDI Input Format |
1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i 720p: 50/59.94/60p |
HDMI Input Format |
4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 1080i: 50/59.94/60i 720p: 50/59.94/60p |
HDMI Loop-out Format |
Identical to the HDMI video input |
DC Port |
5.5mmx2.1mm, center positive
|
DC Voltage |
7.4~16.8V
|
Battery |
Compatible with NP-F550, NP-F750, NP-F970
|
Audio |
48KHz 16/20/24bit
|
Latency |
1080p < 25ms 4K < 35ms (Camera latency not included)
|
Transmission Range |
≥ 2.5 km (No obstacles, no interference)
|
Operating Environment Temperature |
-10~40℃
|
Power Consumption |
6.5W average *Without powering other devices
|
Dimensions (Antennas Not Included) |
130mm x 95mm x 32 mm
|
Weight |
322g
|
Receiver | |
---|---|
A/V Processor |
8K High Performance A/V Processor
|
Protocol |
Accsoon Proprietary RTMS 4.0 Protocol
|
Video Output | HDMI Loop-Out |
USB-C Video Output to iOS |
√ |
SDI Output Format |
1080p: 24/25/30/50/60p Level A 1080i: 50/60i 720p: 50/60p |
HDMI Output Format |
4K (3840*2160): 24/25/30/50/60p 1080p: 24/25/30/50/60p 1080i: 50/60i 720p: 50/60p |
DC Port |
5.5mmx2.1mm, center positive
|
DC Voltage |
7.4~16.8V
|
Battery |
Compatible with NP-F550, NP-F750, NP-F970
|
Audio |
48KHz 16/20/24bit
|
Latency |
1080p < 25ms 4K < 35ms (Camera latency not included)
|
Transmission Range |
≥ 2.5 km (No obstacles, no interference)
|
Operating Environment Temperature |
-10~40℃
|
Power Consumption |
5.0W average
|
Dimensions (Antennas Not Included) |
130mm x 95mm x 32 mm
|
