Accsoon CineView M7 PRO TX/RX Monitor

Accsoon CineView M7 PRO TX/RX Monitor

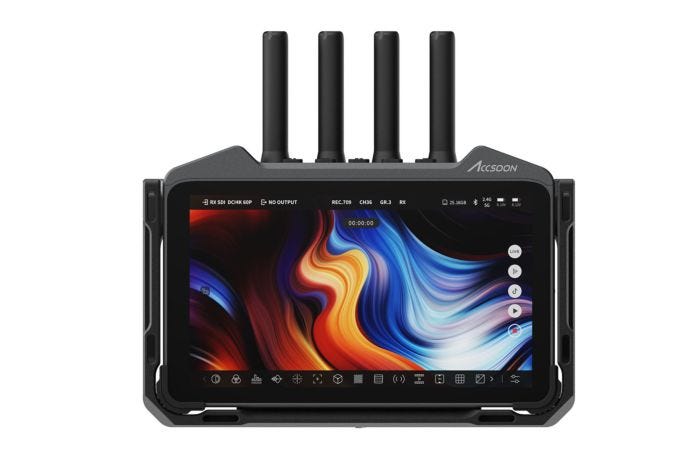

The CineView M7 PRO is a professional 7-inch touch-screen SDI/HDMI monitor with an integrated long range wireless receiver and transmitter compatible with Accsoon’s popular CineView transmitters. It has a range of 1200ft / 350m and uses Accsoon’s patented ultra low latency wireless technologies to simultaneously transmit on more than one band for greater reliability.

The CineView M7 is essentially the same monitor but without the CineView integration and external antennas. Both models have a custom built 7-inch 1900x1200 display with cinema-grade accuracy, covering 100% of Rec.709, and a 1500:1 ultra-high static contrast ratio. The screens are protected with super tough Corning Gorilla Glass Victus®, ensuring they remain scratch-free.

The monitors are built for the rigors of professional use with all aluminum casings that also ensure excellent heat dissipation. A custom cage and sunhood will be available separately.

The CineView M7 PRO and CineView M7 are far more than just monitors and receivers: they are highly sophisticated connected computing devices, each with a high-performance processor and a custom operating system. This allows them to utilize the built-in GPU and Neural Processing Unit for faster, more efficient image-processing performance - making them truly a next generation platform for the future.

Both monitors can connect to a local network via Wi-Fi 6 for ultra-fast connectivity, seamlessly linking camera to cloud platforms for effortless file sharing with services. They can also stream directly to social platforms using RTMP/SRT.

The CineView M7 and M7 PRO can also record footage at up to 4K60 in H.264 or H.265 direct to external USB thumb drives, SD cards or external SSDs. This provides a simple solution for instant review of footage on-set, or sharing to social media and streaming platforms, with the increased processing power allowing the menus and file management to be incredibly responsive. Video and audio bitrates can be adjusted to match the required record times and storage media.

The User Interface on the monitors is intuitive, fresh and modern. A full suite of professional monitoring tools including False Color, Histogram, Zebras, Waveform and Vectorscope is available at the user’s fingertips. Buttons can also be customized to fit the user’s preferences. Because of the advanced processing power of the CineView M7 and M7 PRO these tools can easily be updated and improved, or new intelligent features added if required.

 The processing power also allows the monitors to work in high accuracy with LUTs. Users can easily import and load 3D LUTs and High Accuracy 1D LUT (up to 4096) via USB to a computer, SD Card or flash drive. Importantly the CineView M7 and M7 PRO can also function as a LUT box allowing the transform to be applied to output via HDMI, SDI or Wi-fi streaming, or to be ‘burned’ into the image recorded direct to card.This massively simplifies the on-set color management process.

Another impressive feature of the CineView M7 and M7 PRO is the ability to convert video formats, greatly simplifiying monitoring and recording workflows. They can perform SDI-HDMI Cross Conversion, as well as Up/Down and Cross Conversion from HD to 4K Video. It may also be possible to increase or decrease output frame rates. This will also make the monitors an invaluable addition to many broadcast workflows.

A professional monitor demands professional calibration tools and the CineView M7 PRO and CIneView M7 do not disappoint here either. The screen has a full range of gamma correction/compensation, color temperature correction and independent RGB channel gain and offset settings. There is also the ability to use a screen calibration LUT.

Intelligent video monitoring is the future. Free from conventional restraints, users can soon unlock boundless possibilities with the Accsoon CineView M7 PRO and CIneView M7.
