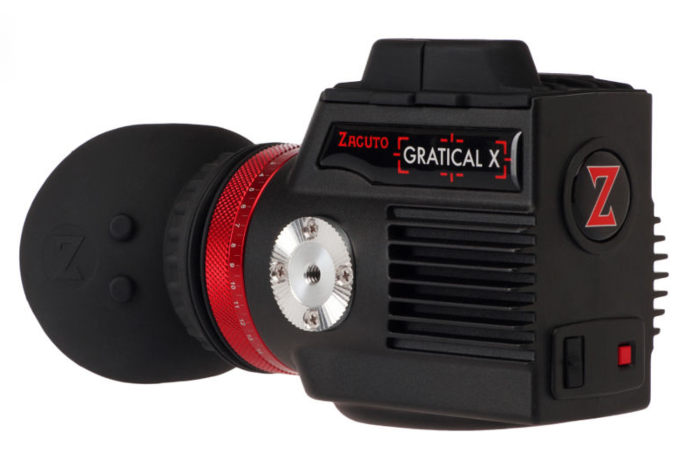

The Zacuto Gratical X Micro OLED EVF is positioned as an entry-level version of the feature rich Zacuto Gratical HD.
However, the Gratical X is far more than just a capability-limited entry-level EVF. The true advantage of the Gratical X lies in the many ways you can customize it, creating an EVF with only the features you want for a customized EVF that exactly suits your needs. However, you can also choose to upgrade it to the full version of the Gratical HD at your own pace as your needs require.
In its base configuration, the Gratical X provides you a compact EVF that features a micro OLED panel about the size of your thumbnail with 5.5 million dots of resolution that produces an image with true blacks and a 10,000:1 contrast ratio. Both the HDMI and SDI inputs are enabled, supporting RGB signals at 24-bits for vivid color rendition, and featuring color bars, blue only setting for calibration, and display adjustments. Optional upgrades allow you to activate the loop-through outputs, LUT support, waveform and vectorscope displays, as well as focus and exposure tools such as peaking and false color. The EVF powers from a single LP-E6-type battery, and an 1800mAH battery provides approximately four hours of constant run time.
General Features
Optional Test Patterns & Diagnostic Signal Upgrades
Scopes
False Color
The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure.
Peaking
Peaking highlights the sharpest (most in focus) areas of the image with a color outline.
Zebra
Provides a crawling black and white pattern overlaying areas that exceed the brightness levels you select.
Frame Store
You can store frames within the EVF to recall them at a later time. You can also adjust the transparency of the frame store and superimpose it on the current view when you need to align shots.
Test Pattern Generation
The EVF can generate color bars and a Macbeth color chart
Key Features:
Display: 0.61" / 15.1 mm
Frame Rate:
Resolution:
Contrast Ratio: 10,000:1
Refresh Rate: 50/60 Hz
Colour Depth: RGB: 24-bit
Luminance: 120 to 250 nit
Pixel Density: 2687.21 PPI
Colour: 16.7 million colours
Connections:
Input:
Output:
Upgrades:
Mounting Options:
