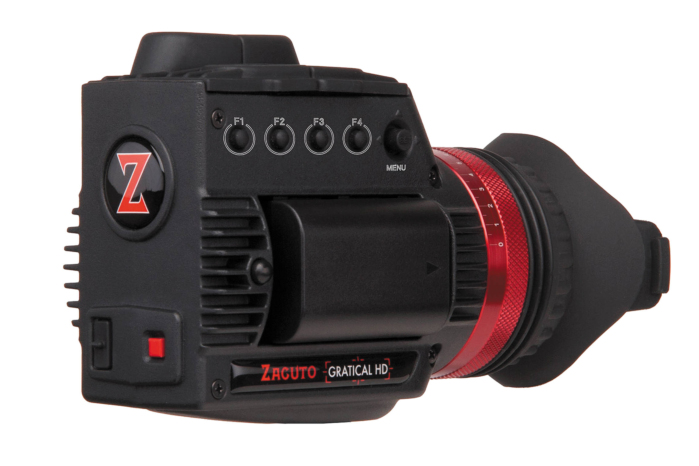

Rising far above the readily available generic EVF or LCD screen with a loupe magnifier attachment, the Zacuto Gratical HDEVF packs more display features and functions than is found in many much larger EVFs and on-camera monitors.
At the heart of the EVF is a micro OLED panel about the size of your thumbnail with 5.5 million dots of resolution that produces an image with true blacks and a 10,000:1 contrast ratio, supporting RGB at 24-bits for vivid color rendition. You can choose to display a 720p image within the full resolution display of the OLED and then display the various scopes and signal displays outside of your picture area, which allows you to have an unobstructed view of your image while being able to see a waveform or histogram display of your image.
The EVF incorporates both SDI and HDMI loop-through inputs/outputs and can cross convert from HDMI to SDI. It also supports peaking, false color, and test pattern generation as well as LUT creation and import. You can also select to view/display audio meters. The unit features four user-programmable buttons for often-used menu selections, and supports multiple frame rates. Zacuto has designed the entire optical path, providing a diopter that is adjustable from -1 to +4. The optical path includes an automatic light trap that can prevent damage to the EVF from accidental exposure to direct sunlight. Incorporating an ARRI-compatible rosette and a 1/4"-20 mounting hole provides a variety of means to mount the EVF to your camera. The EVF powers from a single LP-E6 type battery, and this 1800mAH battery provides approximately four hours of constant run time.
General Features
Test Patterns & Diagnostic Signals
Scopes
False Color
The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure.
Peaking
Peaking highlights the sharpest (most in focus) areas of the image with a color outline.
Zebra
Provides a crawling black and white pattern overlaying areas that exceed the brightness levels you select.
Frame Store
You can store frames within the EVF to recall them at a later time. You can also adjust the transparency of the frame store and superimpose it on the current view when you need to align shots.
Test Pattern Generation
The EVF can generate color bars and a Macbeth color chart
Key Features:
Display: 0.61" / 15.1 mm
Frame Rate:
Resolution:
Contrast Ratio: 10,000:1
Refresh Rate: 50/60 Hz
Color Depth: RGB: 24-bit
Luminance: 120 to 250 nit
Pixel Density: 2687.21 PPI
Colour: 16.7 million colors
Connections:
Input:
Output:
Upgrades:
Mounting Options:
