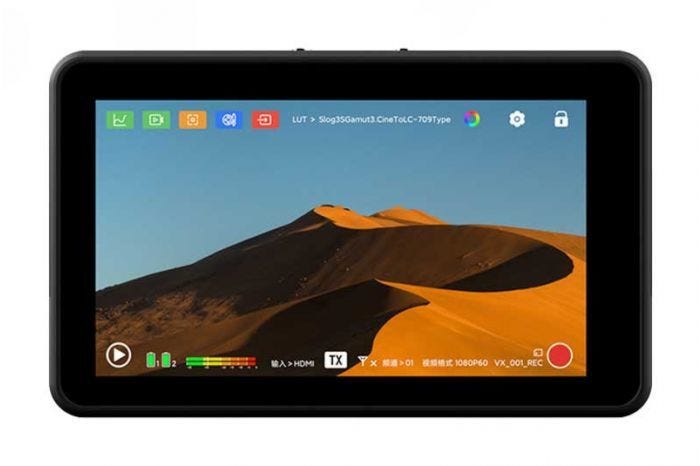

Vaxis Atom A5 5.5" Wireless RX/TX Monitor

Availability:In stock
Cat No.
51498
SKU
VA22-A5-TR01
Vaxis

5 in stock for Immediate Dispatch

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£510.00 £425.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Vaxis Atom A5 5.5" Wireless RX/TX Monitor

Highly Integration New Experience​

AllInOne Video Transmission System + Monitor Video Record + Playback Wireless Video Transmit + Receive

Superior Performance - 5.5" Standard Pixel , Super Retina Screen

Accurate Sharpening. No fear of bright sunlight,clearly display picture details.

1000Nits - Peak Brightness
1200:1 - Contrast Ratio
401 PPI - Sharp Display
RealTest Data - From Vaxis Lab
Video Transmission System & Monitor In One

Wireless Monitoring. Video transmission system and monitor unit as one

150m Transmission Range

Extreme Distance. Remains stable for long distances,meets most usage scenarios.

Lower Latency Faster Follow Focus

80ms Delay. Almost insensitive time-lapse, easy to follow focus.

Dual NPF Battery Slots

Ultra-low Power Consumption.
A single NPF- 550 battery (3500mAh) can last up to 4.5 hours of continuous use.

Multiple Ports

Dual HDMI Ports. Support HDMI loop out, it can be used as an on-camera monitor or as a receiver to loop out signal to broadcast monitor.

Lower Latency Faster Follow Focus

80ms Delay. Almost insensitive time-lapse, easy to follow focus

Break The Chain

5.5" Screen Adaptation. Redesigned CINE os for 5.5" monitor screen, new interactive way, increase your creative passion.

New Menu

Graphical operation menu, better visual effects.

SCOPE

Accurate picturey restore the most realistic color and exposure.

3D-LUT

Customize 5 shortcuts up to 50 LUTs can be stored in the monitor.

PEAKING

AFCA intelligent focus assist algorithm, sharp focusing.

ZOOM

Multi-touch, two-finger zoom.

TX/RX In One

Both TX and RX. The transmit and receive states can be switched according to your existing Atom series products.

Record & Playback

Record & Playback in one. The recorded MPG-4 files are stored in the TF Card, you can instantly playback and review the footage on set. Preserved files can also be edited directly as proxy files.

Synchronous Recording

Timecode Sync. No need to manually record. When the camera starts recordinlg, both the transmitter and receiver will start recording synchronously.

  • Wirelessly Monitor Video from up to 492'
  • RX & TX Mode Switching, Trigger Control
  • 5.5" 1920 x 1080 Touchscreen Display
  • Monitor x1
  • Antenna x2
  • Instruction Card x1
  • HDMI Cable x1
  • 32G TF Card x1
Interface

DC IN, DC OUT

HDMI IN, HDMI OUT

3.5mm Audio Jack, Type-C, 3.5mm-IR IN

Input Voltage
Screen Size 5.5 Inch Touch
Screen Resolution 1920x1080 pixels
Screen Brightness 1000cd/m*2
Contrast Ratio 1200:1
Input Video Format

1920x1080P 60/59.94/50/30/29.97/25/24/23.98

1920x1080I 60/59.94/50

1280x720P 60/59.94/50

Output Video Format

1920x1080P 60/50/30/25/24

1920x1080I 60/50

1280x720P 60/50



Audio Format 48KHz
Net Weight 348g
Size 151*92*30.5mm
DC Max Output Power 8.5V/0.6A
Wireless Operating Frequency 5.1G-5.8G
Transmitting Frequency 17dBm
Trasnmission Latency 80ms, 120ms(under interference environments)
Receiving Sensitivity -80dBm
