TVLogic LVM-328W 32" 1920 x 1080 Native HD LCD Monitor
Availability:In stock
Cat No.
34731
SKU
TVL-LVM-328W
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£4,730.40
£3,942.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

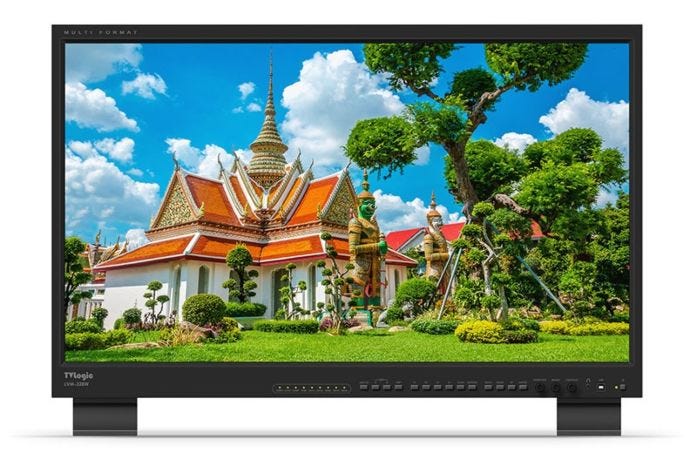

TVLogic LVM-328W 32" 1920 x 1080 Native HD LCD Monitor
The LVM-328W is a 32-inch 1920 x 1080 resolution broadcast QC-grade monitor.
A new white LED back-light unit improves power consumption, colour purity, and contrast ratio.
The LVM-328W has a new, thinner bezel width to improve edge-to-edge viewing and features 12-bit video processing and a multiple image-measurement tools.
Key Features
- Blue Only/ Mono: Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the colour tones and saturation of the screen using the SMPTE colour bar. For Example, after displaying the Blue channel, adjust the Colour (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
- H/V Delay: Allows you to check the Blanking area and synchronise signals by displaying the horizontal and vertical intervals in the centre of the screen.
- Key Lock: Locks the knob or key control
- Marker: Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line colour and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
- Range Error: Analyses the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.
- Time Code Display: Displays the time-code information on the screen
- User Aspect: Adjusts the Width/Height display ratio
- Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
- Vector Scope: Displays the colour components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
- 1:1 Pixel mapping Modes for SD/HD: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
- UMD: Displays user customised 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen
- Blue Only/ Mono
- H/V Delay
- Key Lock
- Marker
- Range Error
- Time Code Display
| Display Spec | |
|---|---|
| Size | 31.5" |
| Resolution | 1920 X 1080 (16 : 9) |
| Pixel Pitch | 0.364mm |
| Colour Depth | 16.7M |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 350cd/m2 |
| Contrast Ratio | 1200 : 1 |
| Display Area | 698(H) x 392(V) mm |
| Input | |
| 3 X BNC | Analog Input (Component) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |
| Output | |
| 3 X BNC | Analog Output (Component) |
| 4 X BNC | 3G-SDI Output |
| Audio | |
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Output | Analog Stereo (Phone Jack) |
| FPGA Functions | 1:1 Pixel Mapping Modes for SD/HD, Blue Only, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Waveform/Vector |
| Closed Caption | CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47 |
| Calibration | TVLogic Color Calibration Utility |
| Other Functions | |
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB cable |
| Ethernet | Ethernet Control support |
| Conversion | SDI-to-SDI, |
