TVLogic LUM-181G 18.5in UHD Ready LCD Monitor
Availability:In stock
Cat No.
51459
SKU
TVL-LUM-181G
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£3,795.00
£3,162.50
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

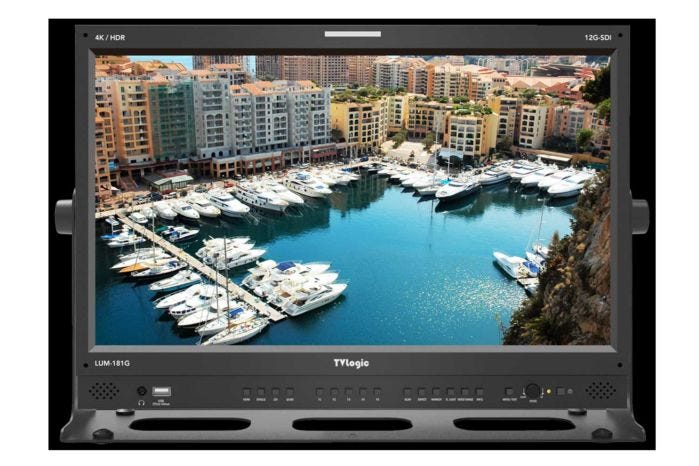

TVLogic LUM-181G 18.5in UHD Ready LCD Monitor
The new LUM-181G monitor supports 3G/6G/12G-SDI input with a native 1920 x 1080 LCD with SD/HD/UHD/4K input support, this monitor can be anywhere including field production applications.
Key Features:
- 18.5in FHD Panel + 4K Interface
- DR Emulation (PQ, HLG)
- 12G-SDI Single Link 4K/UHD
- 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
- Waveform / Vectorscope
- 16ch Audio Level Meter
- Focus Assist
- Marker
- Timecode Display
- UMD Display
- Various Aspect
- Luma(Y’) Zone Check
- Tally
- Range Error
- Closed Caption (CC-608, CC-708)
- H/V Delay
- Blue/Mono Only
- 18.5in FHD Panel + 4K Interface
- DR Emulation (PQ, HLG)
- 12G-SDI Single Link 4K/UHD
- 1x Monitor
- 1x AC Power Cord
- 1x Table Stand
- 1x Control Knob Cap
- 1x Carry Handle
| Size | 18.5in |
| Resolution | 1920 x 1080 (16:9) |
| Pixel Pitch | 0.213(H) x 0.213(V) mm |
| Color Depth | 16.7M Colours (True 8 bit) |
| Viewing Angle | 178˚(H)/178˚(V) |
| Luminance of white | 500nits |
| Contrast Ratio | 1000:1 |
| Display Area | 408.96(H) x 230.04(V) mm |
| Input | |
| 4 x BNC | 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel Input1 x HDMI HDMI(2.0) Input |
| 1 x HDMI | HDMI(2.0) Input |
| Output | |
| 4 x BNC | 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel (Active Through Out) |
| Input Signal | |
| 12G-SDI | 12Gb/s |
| 6G-SDI | 6Gb/s |
| 3G-SDI | 2.970Gb/s |
| HD-SDI | 1.485Gb/s |
| HDMI | 2160p(60)/1080p(60)/1080i(60)/720p(60)/ 480i(60)/480p(60)/576i(50)/576p(50) |
| SDI Input Signal Formats | |
| SMPTE ST 2082 | 3840x2160 (60/50/30/25/24p |
| SMPTE ST 2081 | 3840x2160 (30/25/24p) |
| SMPTE ST 2036-1:2009 | 3840×2160(23.98/24/25/29.97/30/50/59.94/60p |
| SMPTE-425M-A/B | 1080p(60/59.94/50/30/29.97/25/24/23.98 /30sF/29.97sF/25sF/24sF/23.98sF) 1080i(60/59.94/50) |
| SMPTE-274M | 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-296M | 720p (60/59.94/50) |
| SMPTE-260M | 1035i (60/59.94) |
| SMPTE-125M | 480i (59.94) |
| SMPTE ST 2048-2:2011 | 2048x1080(23,98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p) |
| Audio In | Embedded Audio / Analog Stereo (Phone Jack) |
| Audio Out | Internal Speaker(Stereo) / Analog Stereo(Phone Jack) |
| Power DC | 12V /24V / AC 100~240V(50~60Hz) |
| Power Consumption | (Approx.) TBD |
| Dimensions | |
| Main Body | 442.5 x 309 x 84 (mm) / 17.42 x 12.16 x 3.3 (inch) |
| With Stand | 489.3 x 332.8 x 137.5 (mm) / 19.26 x 13.1 x 5.41 (inch) |
| Weight | 6.52kg / 14.37lbs |
