TVlogic F-7HS 7 inch FHD Field Monitor With Enhanced Sharpness
Availability:In stock
Cat No.
51455
SKU
TVL-F-7HS
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,625.00
£1,354.17
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

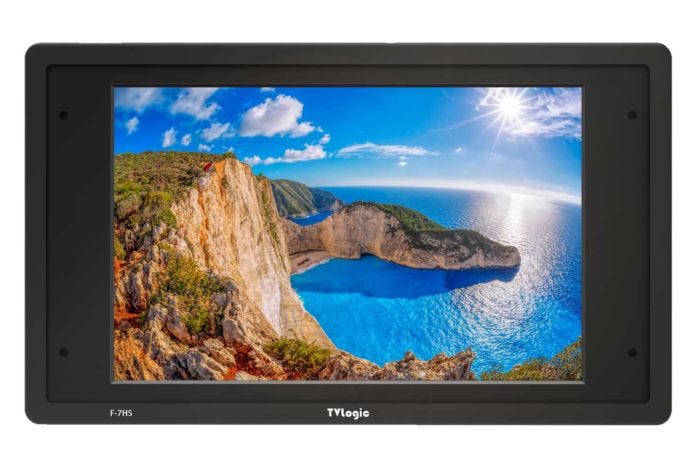

TVlogic F-7HS 7 inch FHD Field Monitor With Enhanced Sharpness
7" Full HD High Brightness Field Monitor with Enhanced SharpnessThe F-7HS is a 7" 1920x1080 resolution field monitor that offers Max Brightness of 1800nits with enhanced sharpness and peaking boost function via the refined image processing engine.With the high quality picture and professional features, F-7HS shows the best performance anywhere.
Why F-7HS?
- HDMI / SDI
Cross convert HDMI / SDI - HDR Emulation
Simulate HDR expression with Normal diaplay panel - 3D LUT
Accept 17x17 CUBE file - Camera LUT
Support Camera LUT for Log - 1500 nits in Outdoor mode
- 1800 nits in Max Brightness mode
Key Features:
- 7in Full HD Resolution (1920 x 1080)
- Luminance up to 1,500nits
- HDMI - SDI Cross Conversion
- HDR Emulation (PQ, HLG, S-Log3)
- Custom 3D LUT Import by USB Flash Drive
- Various Built-in Camera LUTs
- ARRI Metadata
- Excellent Sharpness
- Peaking Boost
- Waveform / Vectorscope
- H/V Flip
- Marker
- Split Zoom
- Focus Assist
- 16ch Audio Level Meter
- Anamorphic Desqueeze
- Timecode Display
- Luma(Y’) Zone Check
- Screen Tally
- 7in Full HD Resolution (1920 x 1080)
- Luminance up to 1,500nits
- HDMI - SDI Cross Conversion
- 1x Monitor
- 1x D-Tap Cable
- 1x Camera Mount
| Size | 7 inch |
| Resolution | 1920 x 1200 (16:10) |
| Pixel Pitch | 0.0787(H) x 0.0787(V) mm |
| Colour Depth | 1.073B Colors (10 bit) |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminanace of White | 1500nits |
| Contrast Ratio | 1200:1 |
| Display Area | 151.2(H) x 94.5(V) mm |
| Input | |
| 1 x HDMI | HDMI Input |
| 1 x BNC | SDI Input |
| Output | |
| 1 x HDMI | HDMI Output (HDMI loop out,SDI-to-HDMI Conversion output) |
| 1 x BNC | SDI Output (SDI loop out,HDMI-to-SDI Conversion output) |
| Input Signal | |
| 3G SDI | 2.970Gb/s |
| HD-SDI | 1.485Gb/s |
| SD-SDI | 270Mb/s |
| SDI Input Signal Formats | |
| SMPTE ST-425M-A/B |
1080i(60/59.94/50) |
| SMPTE ST-274M |
1080i (60/59.94/50) |
| SMPTE ST-296M | 720p (60/59.94/50) |
| SMPTE ST-125M | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| Audio In | SDI Embedded Audio (Group, Ch Selectable) |
| Audio Out | External Output Port (3.5mm Phone Jack) |
| Power | DC 12V 1.8A |
| Power Consumption (Approx.) | TBD |
| Weight | 0.8kg / 1.76lbs |
| Included Accessories | D-Tap Cable, Camera Mount |
| Dimensions | 211 x 125 x 28.3 (mm) / 8.3 x 4.92 x 1.11 (inch) |
| Weight | 0.76kg / 1.67Ibs |
