Swit S-8180A 220Wh Gold Mount Battery

Availability:In stock
Cat No.
14281
SKU
S-8180A
SWIT

Order Now - Usually available to despatch in 1-2 weeks

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£402.00 £335.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

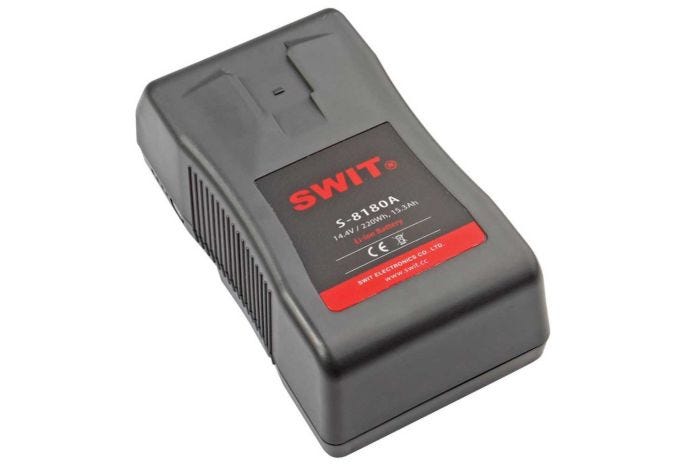

Swit S-8180A 220Wh Gold Mount Battery

Adopt High-Load Li-ion Cells

Max 140W, 12A constant power output and perfect for high draw power application

Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but Cinema Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced with long time full draw powering.

Moreover, if there is a monitor and lighting working together, the total power will be above 100W, and the normal batteries can not draw completely.

Using S-8180A high-load battery, you can get MAX 140W/12A constant power output, which can drive more high power cameras, lightings and other equipment easily, and won’t reduce battery life during long time high power output.

220Wh / 15.3Ah High Capacity
Consists of 23pcs 18650 battery cells, and reaches 220Wh / 15.3Ah high capacity.
Can run approx 7 hours for normal 30W ENG cameras; and approx 2.5 hours for ARRI Alexa camera.

AntonBauer Gold Mount Connection
S-8180A is compatible with AntonBauer Gold mount type power system and we adopt the high-quality connection bolts that ensure the reliable mounting.

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8180A battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

4-level LED Power Indicator
On the side of the battery, there're 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

Key Features

  • High-load Li-ion cells
  • Max 140W, 12A constant output
  • 14.4V, 220Wh capacity
  • D-tap output socket
  • 4-level LED power indicator
  • Gold mount type connection
  • Multiple circuit protections
  • High-load Li-ion cells
  • Max 140W, 12A constant output
  • 14.4V, 220Wh capacity
  • D-tap output socket
Product S-8180A
Nominal Voltage 14.4V
Capacity 220Wh/15.3Ah
Max output power

In total:200W
Electrodes:200W,16A
D-tap:120W,10A

Mount Type

Gold mount

Operation Temperature

0-40°C

Net weight

Approx 1.3kg

Dimensions

165×90×68mm
