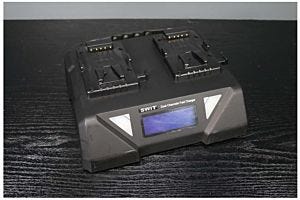

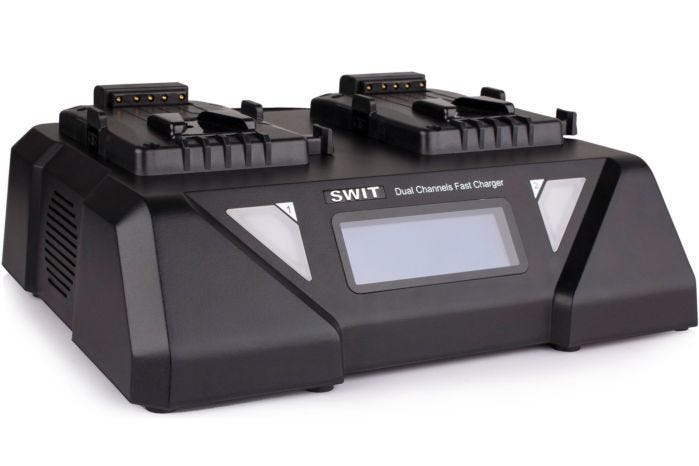

2-ch Simultaneous V-Mount Fast Charger for select SWIT Batteries
The S-3812S fast charger can charge 2 V-mount batteries simultaneously at Max 6A fast charging current when partnered with the new SWIT fast charge V-mount battery range. The charging speed is twice as fast than normal V-mount chargers. The following battery models support 6A fast charging: S-8340S, S-8360S, D-8161S. For other batteries, the charging current is 3A.
AC-DC Adapting Output The S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. With the S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to other equipment up to a maximum load of 200W/12A. When the adapting load is less than 100W, the S-3812S quick charger can still charge the battery simultaneously. (With 2 batteries, the charge is sequential).
Battery-DC Adapting Output You can also mount batteries on to the S-3812S charger, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.
LCD Charging Info Display The S-3812S has an LCD screen to display the real time charging/adapting information.
Battery Charging/Discharging status
Real time capacity and percentage
Real time Voltage/Current
Remaining time until fully charged
Remaining time until fully discharged
Battery cycle times
Adapting output current and power
3-Colour LED Indicators The S-3812S has the 3-colour LED indicators for both 2 channels:
Red light slowly flashes: The battery is charging
Red light fast flashes: The battery is almost fully charged
Green light constant: The battery is fully charged
Green light flashes: The battery is adapting output
Orange light flashes: Battery or Charger has an error
2-ch simultaneous charging
Gives user 85% charge in 1 hour
Can identify battery type and adjust charging method accordingly
