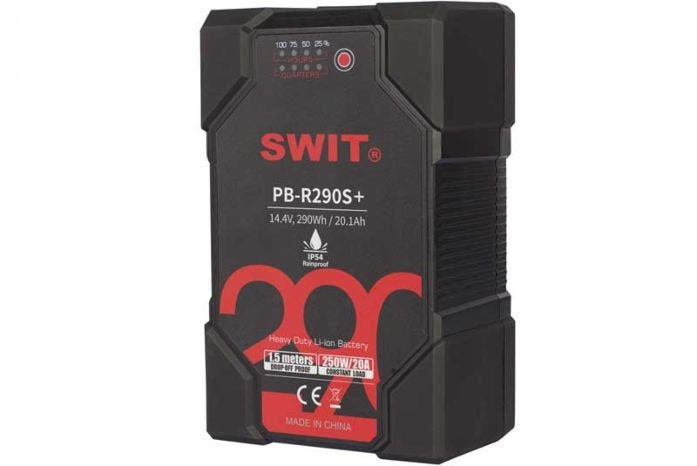

Heavy Duty - PB-R290S+ is a 290Wh V-mount battery, for Cine and ENG cameras, with dual housing , heavy duty sealed structure, IP54 rainproof and 1.5m shock resistant. The battery supports high load, fast charging and digital power info display, for field applications.
290Wh / 20.1Ah Capacity - Consisting of 24pcs of high class 18650 battery cells, and reaching 290Wh / 20.1Ah high capacity. Runs approx 11 hours for normal ENG cameras, and approx 3.5 hours for ARRI ALEXA.
High Load for Cine Cameras - 250W / 20A constant load - PB-R290S+ provides at least 250W/20A high load even at 1% capacity, (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together.
6A Fast Charging - Using SWIT S-3812S fast charger - PB-R290S+ supports 6A fast charging by SWIT S-3812S fast charger, saving more than 50% charging time. The 290Wh PB-R290S+ battery can be charged from 0 to 80% after 3.4 hours, and fully charged within 4.8 hours.
Digital Power Info - 8-LED + SONY&RED viewfinder info - PB-R290S+ has SWIT's innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent SMBUS that is compatible with both SONY and RED camera systems which can display remaining minutes on camera viewfinder.
D-tap Socket
A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera accessoires. The Max output current of D-tap is 10A.
Key Features -
Nominal Voltage | 14.4V |
---|---|
Capacity | 290Wh/20.1Ah |
Constant load | 250W / 20A |
Max charging current | 6A fast charging |
IP class | IP54 |
Mount Type | V-mount |
Operation Temperature | 0-40°C |
Net weight | Approx 1.51kg |
Dimensions | 162×101×69mm |
