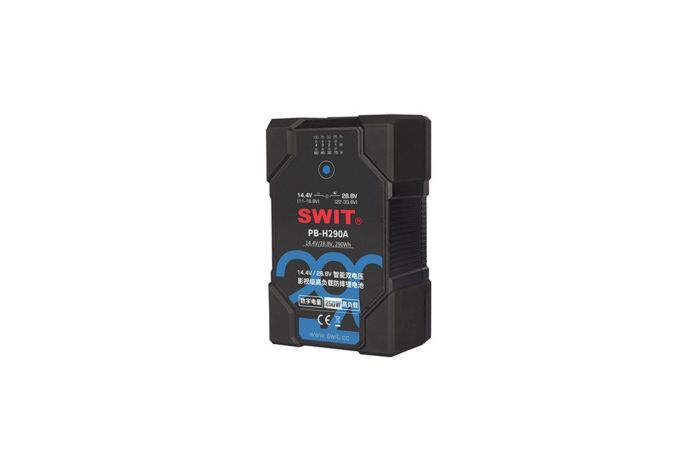

SWIT PB-H290A 290Wh High Load Bi-voltage Battery
Availability:In stock
Cat No.
45385
SKU
PB-H290A
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£730.80
£609.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
SWIT PB-H290A 290Wh High Load Bi-voltage Battery
14.4V/28.8V Bi-Voltage
Auto detect and switching
Many high power film devices are designed 22-33.6V high power input, to reduce current. If a standard Gold mount battery output high voltage directly, it will damage normal 14.4V voltage devices.
SWIT innovative “Bi-voltage” battery adopts standard Gold mount, and output 11-16.8V normal voltage or 22-33.6V high voltage by automatic recognition and switching, and compatible for all normal voltage chargers, safe and reliable.
Active 22-33.6V output
By SWIT TD-R210A adaptor
PB-H290A will detect SWIT dedicated Gold mount plate and output 22-33.6V high voltage.
With TD-R210A Dual Batteries Light Stand Adaptor, PB-H290A will output 22-33.6V, and 2x PB-H290A can output Max 48V/500W, for Skypanel S60/S120 and Orbiter 100% output.
PB-H290A consists of 24pcs high class 18650 battery cells, and reaches 260Wh high capacity, Max constant load is 250W.
To drive high power cine camera and lights, and the high load battery will have longer life time than normal battery if always under full load power.
6A Fast Charging
Using SWIT fast charger
PB-H290A supports 6A fast charging by SWIT S-3812A or PC-P460A fast charger, to save up to 60% charging time, can be charged from 0 to 80% after 2 hours 30 minutes, and fully charged within 4 hours 50 minutes.
D-tap Socket
A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipment to- gether.
Under 14.4V (11-16.8V) output mode, D-tap output 11-16.8V and Max load 120W/10A;
Under 28.8V (22-33.6V) output mode, D-tap output con- stant 16V and Max load 50W/3A;
Key Features:
- 14.4V/28.8V Bi-voltage auto switch
- Power normal 11-16.8V equipment
- Power high 22-33.6V equipment
- Charge by normal 16.8V chargers
- 290Wh capacity, 250W constant load
- 16V D-tap output socket
- 6A fast charging support
- 8-LED remaining time indicators
- Normal Gold mount connection
- 1.5m drop-off proof
- Multiple circuit protections
- 14.4V/28.8V Bi-voltage auto switch
- Power normal 11-16.8V equipment
- Power high 22-33.6V equipment
- Charge by normal 16.8V chargers
| PB-H290A | |
|---|---|
| Nominal Voltage | 14.4V or 28.8V auto switching |
| Capacity | 290Wh |
| Max output power (14.4V) | Total: 250W
Pins: 250W / 20A |
| Max output power (28.8V) | Total: 250W Pins: 250W / 10A D-tap (16V): 50W / 3A |
| Max charging current | 16.8V / 10A |
| Mount Type | Gold mount |
| Charging Temperature | 0 ~ 40°C |
| Discharging Temperature | -20°C ~ 50°C（Capacity and Max Load may decrease when operating below 0°） |
| Dimension | 162×101×75mm |
| Net weight | 1.5kg |
