SWIT Mino-S210 Pocket V-Mount Battery

Availability:In stock
Cat No.
51529
SKU
Mino-S210
SWIT

6 in stock for Immediate Dispatch

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£502.80 £419.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

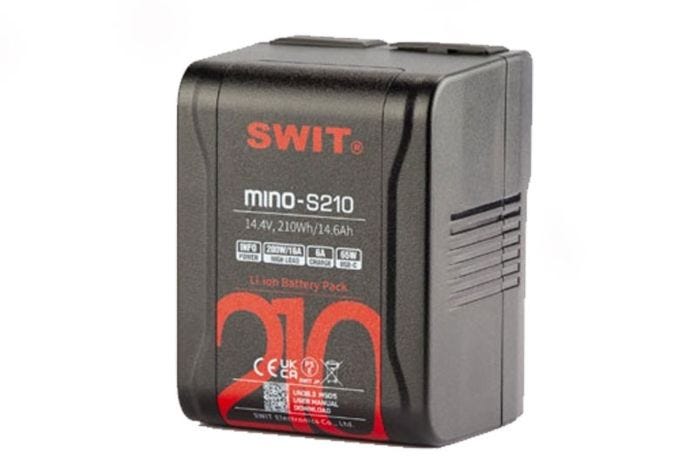

Swit Mino-S210 Pocket V-Mount Battery

The Smallest 210Wh V-mount Battery
MINO-S210 is a large capacity pocket fit size V-mount battery for cine range cameras, lights and various film gears. It fits RED V-raptor at the compact size and power the camera for at least 3 hours.

Compact Handheld Size
As a 210Wh large capacity battery, the MINO-S210 has 105x79.6x73.8mm compact size, and weights 1.02kg only. You can even carry it out with your pocket.

210Wh, 200W High Load
MINO-S210 consists of 12 high capacity cells, with 210Wh/14.6Ah high capacity, and support at least 200W/16A constant high load output, for high power cine cameras and lights..

D-tap, USB-A and USB-C
The MINO-S210 provides various DC sockets:
D-tap x1 - 200W/16A load (Support charging input)
USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 48W charging input

USB-C 48W Charging Input
MINO-S70 battery can be charged by USB-C charger, supports PD 5V/9V/12V/15V/20V(Max) 2.4A, 48W charging input, which means you can fully charge the 210Wh battery within 5 hours.

USB-C 65W Power Output
You can power laptop via USB-C by MINO-S210 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)

Wire-Free Internal Tech
MINO-S210 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

  • Pocket fit compact V-mount battery
  • Support RED V-Raptor install
  • 210Wh/14.6Ah high capacity
  • 1x Swit 210Wh Pocket V-mount Battery Pack
Battery plate V-mount
Nominal voltage 14.4V
Capacity 210Wh, 14.6Ah
Power In & Out
Electrodes 200W 16A out, 16.8V 6A in
D-Tap 200W 16A out, 16.8V 6A in
USB-A 10W, 5V/2A out
USB-C

Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A

BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP

Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A

Dimension 105×79.6×73.8mm (Fit RED Raptor)
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net Weight 1.02kg
