Product Information

8x100W Ultra Fast Wall Charger

8x100W Ultra Fast Wall Charger

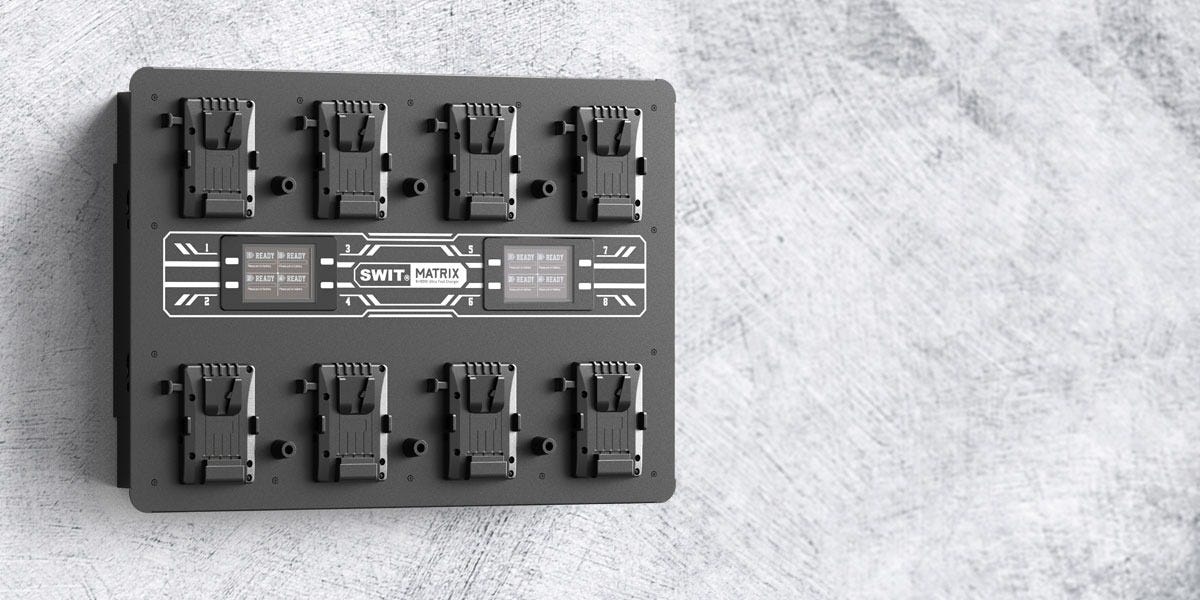

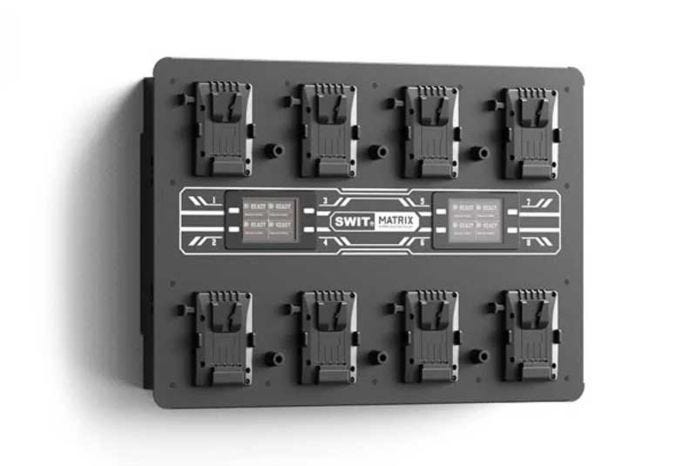

MATRIX-S8 is an 8-ch simultaneous V-mount wall charger with 100W ultra fast charging speed each channel, save up to 60% charging time comparing to normal chargers, supports both 14.4V and 28.8V batteries, for TV stations and rental houses installation.


Charging Time Comparison

Battery Capacity
33W Normal Charger 50W Fast Charger MATRIX
100W Ultra Fast Charger
160Wh 6h 4h 2h 15m
210Wh 8h 5h 15m 3h
220Wh 8h 15m 5h 45m 3h 20m
290Wh 10h 30m 7h 15m 3h 50m
420Wh 15h 10h 10m
5h 20m

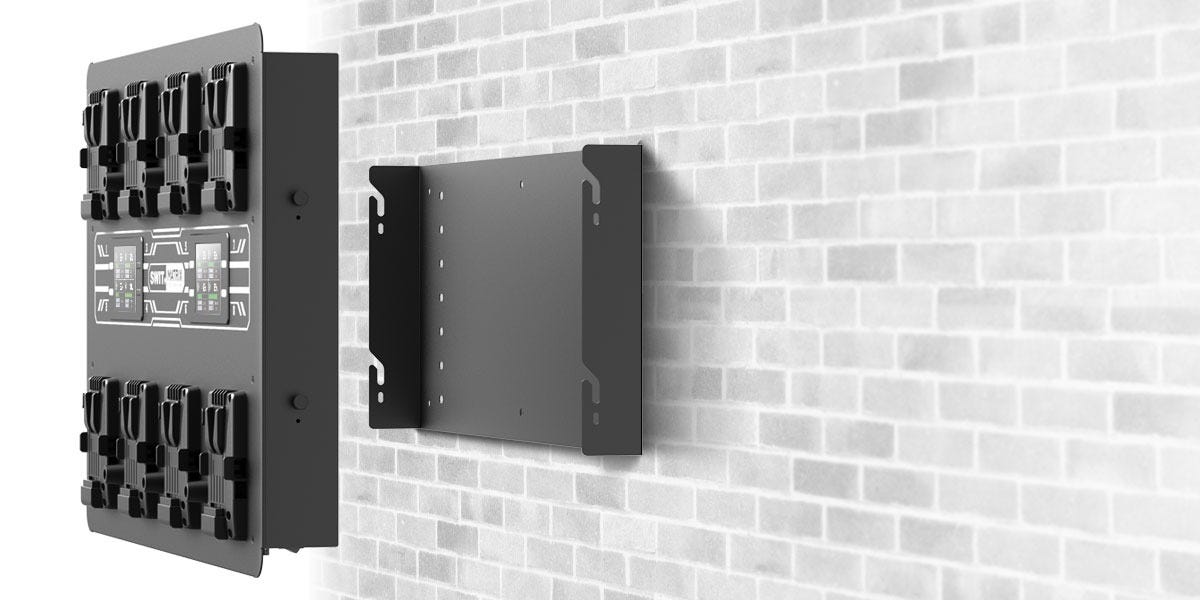

Flexible Wall Mounting Plate

Flexible Wall Mounting Plate

MATRIX-S8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket. You can even install the mounting plate onto storage rack or DIT cart.

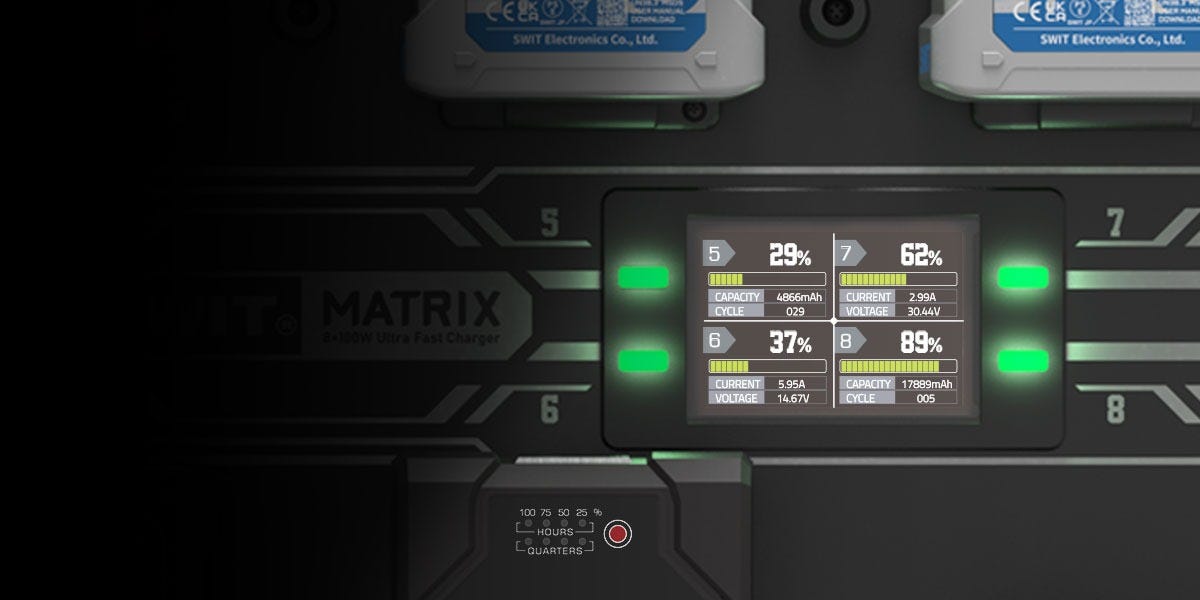

3.5-inch Color LCD and Indicators

3.5-inch Color LCD and Indicators

MATRIX-S8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.You can also check the charging status by large charging indicators from a distance.

SWIT MATRIX 8x 100 W Battery Wall Charger (V-Mount)

MATRIX 8x 100 W Battery Wall Charger (V-Mount) is a wall charger for eight V-Mount batteries.

It can simultaneously charge eight V-Mount batteries with 100 W per channel, as long as they have less than 160 Wh.

In this case, the power drops to 50 W per channel. The wall charger can charge 14.4 V and 28.8 V batteries. Two independent LCD displays show important information such as the percentage of charge of your battery, the current, the voltage and the charging cycles.

Key Features:

  • Wall charger
  • 8ch simultaneous charging possible
  • Charges 14.4 V and 28.8 V batteries
  • DC 33.6 V 100 W Charging SWIT 28.8 V and ≥ 160 Wh batteries
  • DC 33.6 V 50 W Charging SWIT 28.8 V and < 160 Wh batteries
  • DC 16.8 V 100 W Charging SWIT 14.4 V and ≥ 160 Wh batteries
  • DC 16.8 V 50 W charging for all other 14.4 V batteries
  • Two 3.5" color LCD displays
  • Wall charger
  • For V mount batteries
  • 8ch simultaneous charging possible
  • Charges 14.4 V and 28.8 V batteries
  • DC 33.6 V 100 W Charging SWIT 28.8 V and ≥ 160 Wh batteries
  • DC 33.6 V 50 W Charging SWIT 28.8 V and < 160 Wh batteries
  • DC 16.8 V 100 W Charging SWIT 14.4 V and ≥ 160 Wh batteries
  • DC 16.8 V 50 W charging for all other 14.4 V batteries
  • Two 3.5" color LCD displays
  • 1x Swit MATRIX 8x 100 W Battery Wall Charger (V-Mount)
  • 1x Wall mounting plate
Performance Max. 900 W
Entry AC 100 - 240 V, 50/60 Hz
Dimensions 628,4 x 435,4 x 68,7 mm
Weight 13 kg
