SWIT KA-A30B B-mount Hotswap Plate for SXT/LF/65
Availability:In stock
Cat No.
49415
SKU
KA-A30B
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£782.40
£652.00
-
Free UK Delivery
On orders over £250
-
Price Match
Request here
Product Information

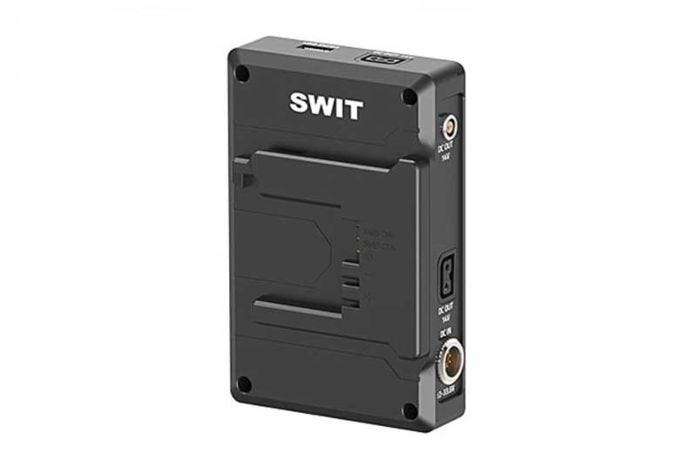

SWIT KA-A30B B-mount Hotswap Plate for SXT/LF/65
B-mount Hot-swap Plate
The KA-A30B is a B-mount hot-swap plate for ARRI Alexa SXT / LF / 65 install. You don’ t need to switch off the camera when changing the battery.
28.8V Power for ALEXA
Working with 28.8V B-mount battery, the KA-A30B power ALEXA SXT/LF/65 cameras at 28.8V (22-33.6V) by the rear contact pins, and when remove B-mount battery, the KA-A30B output reg. 28V to camera for hotswapping.
2mins at 200W load
The KA-A30B has 32Wh/3Ah battery cells inside, 200W constant high load, even after 1000 cycle times, the plate can still ensure 2 minutes hot swap time for changing batteries.
120s Countdown Display
The KA-A30B provides an LCD screen to display countdown seconds when changing battery. When the battery is removed, the screen will countdown from 120 seconds. You just need to put on a new battery before it counts down to 0. The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back up to 120 seconds after a period of time.
Power Interfaces
KA-A30B provides:
- 2x D-tap 14V Reg. output
- 1x 2-pin LEMO 14V Reg. output
- 1x USB-A 5V/2A output
- 1x 8-pin 22-33.6V input (For power station hotswap)
Key Features:
- Dedicated for Alexa SXT/LF/65 install
- B-mount battery attach
- 28V, 32Wh 3Ah battery cells inside
- 200W constant high load
- At least 2 minutes run time
- 120 seconds countdown display
- 2x D-tap regulated 14V output
- 1x 2-pin LEMO regulated 14V output
- USB 5V/2A x1 power output
- 22-33.6V 8-pin input for power station hotswap
- Aluminum CNC unibody housing
- Multiple circuit protections
- Dedicated for Alexa SXT/LF/65 install
- B-mount battery attach
- 28V, 32Wh 3Ah battery cells inside
- 200W constant high load
- At least 2 minutes run time
- 120 seconds countdown display
| Inner battery voltage |
|
|---|---|
| Inner battery capacity |
|
| Power load |
|
| 5 pins DC connector |
|
| D-tap output x2 |
|
| 2-pin LEMO output |
|
| USB-A output |
|
| 8-pin LEMO input |
|
| Dimensions |
|
| Net weight |
|
