SWIT HB-C420S | 420Wh 500W Super-High-load 28V Battery, V-Mount

Availability:In stock
Cat No.
50880
SKU
HB-C420S
SWIT

Order Now - Usually available to despatch in 1-2 weeks

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£730.80 £609.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

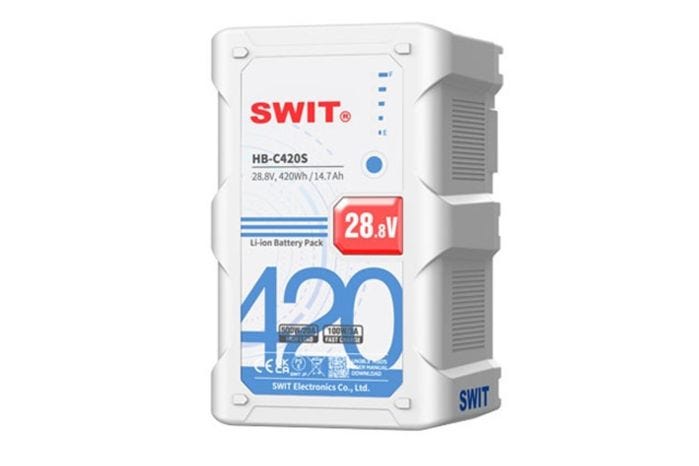

SWIT HB-C420S | 420Wh 500W Super-High-load 28V Battery, V-Mount

HB-C420S provides the world’s largest capacity: 420Wh of handheld V-mount battery, and the world’s largest constant power load: 500W, to drive high power cine lights at longest time.
For example, 2x HB-C420S could power Aputure LS 600C PRO at 100% output, and at least 1.2 hours.

28.8V, 420Wh, 500W Load
HB-C420S consists of 24pcs Li-ion cells, 28.8V (22-33.6V) high voltage, 420Wh large capacity, 500W constant load.

Please do not use the battery on the device that doesn’t support 22-33.6V input.

500W Constant High Load
HB-C420S outputs at least 500W high load even at 1% capacity (Peak load up to 650W), to drive high power gears like the cines lights.

48V 750W Power Solution
Use SWIT dual batteries light stand adaptor TD-R230S, 2x HB-C420S could output 48V 750W to power cine lights like Skypanel S30/60/120, Orbiter, Creamsource Vortex 4 & Vortex 8, Aputure Nova P300/P600 etc.

Creamsource Vortex 8 Power
2x HB-C420S and TD-R230S power adaptor could output 48V 750W DC to full power drive Creamsource Vortex 8 light which requires 650W power.
The 2 batteries totally have 840Wh capacity, comparable with a large floor battery but it’s attached on light stand for easy movement, and will power the Vortex 8 for at least 1hr 20min.

100W Fast Charging
HB-C420S supports DC 33.6V 100W fast charging by PC-P461S charger, to save more than 60% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.

Nominal Voltage 28.8V
Capacity 420Wh/14.6Ah
Power Load 500W constant, 650W peak
Charging DC 33.6V, 3A
Mount Type V-mount
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Net 2.07kg; With package2.15kg
Dimensions 155×101×80mm
