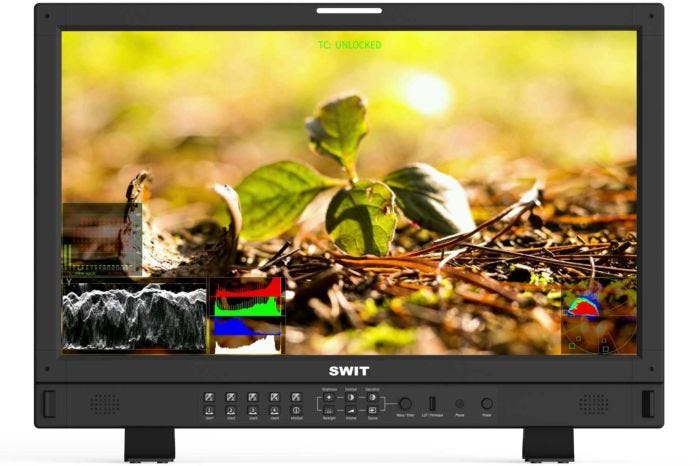

SWIT BM-U245HDR 23.8-inch 4K 12GSDI HDR Studio Monitor
Availability:In stock
Cat No.
45349
SKU
BM-U245HDR
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£5,032.80
£4,194.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
SWIT BM-U245HDR 23.8-inch 4K/8K 12GSDI HDR Studio Monitor
23.8-inch 1000nits 4K
UHD panel, 89% REC2020
BM-U245HDR adopts a 23.8-inch 10-bit LCD panel, UHD 3840×2160 resolution, 1000nits LED backlight, 1000:1 contrast, 91.9% DCI-P3 and 89% Rec2020 color gamut. The viewing angle is H178° / V178°.
Multi 4K/8K Interfaces
12GSDI 4-in 4-out, supports:
- Single link 4K; Quad link 4K and Quad link 8K
- HDMI 2.0 (4K60P)
- 12GSDI via SFP Fiber (Optional)
- ST2110 IP via SFP Fiber (Optional)
Display Modes
Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs. You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.
3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211
With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically.
- 23.8-inch LCD Panel, 3840×2160 resolution
- 1000nits high bright LED backlight
- HLG/PQ/S-log3 HDR
- 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
- 12GSDI via SFP Fiber input (Optional)
- ST2110 IP via SFP Fiber input (Optional)
- SFP Fiber 12G input converted to 12GSDI out
- 3DLUT Auto Self-calibration without PC
- Audio/Video 0 latency for lip-sync
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB
- Waveform / Vector / Histogram
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous
- IP webserver remote control
- TSL UMD and text TALLY display
- USB firmware upgrade
| LCD Performance | |
|---|---|
| Size | 23.8 inches |
| Display area | 527.04×296.46mm |
| Resolution | 3840×2160 |
| Aspect ratio | 16:9 |
| Brightness | 1000nits |
| Contrast | 1000:1 |
| Color | 1.073G colors, 10-bit |
| Viewing Angle | 178°(H) /178°(V) |
| Input | |
| BNC ×4 | 12G/6G/3G/HD/SD-SDI input |
| HDMI ×1 | HDMI 2.0 input |
| Output | |
| BNC ×4 | 12G/6G/3G/HD/SD-SDI loop output |
| Video Format | |
| SDI | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (50 / 59.94 / 60) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94), 576I (50) |
| HDMI | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) |
| General | |
| Input voltage | AC 100-240V, 50/60Hz, DC 12-17V |
| Power consumption | 120W |
| Working temperature | 0°C～+50°C |
| Working humidity | 10%～90% |
| Storage temperature | -15°C～+60°C |
| Storage humidity | 10%～90% |
| Dimensions | 593×404.5×92mm |
| Net weight (main body) | 10kg |
