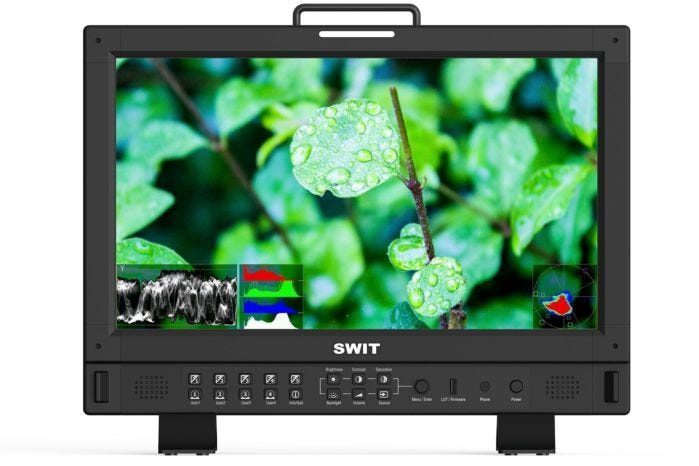

SWIT BM-U175 17.3-inch 4K/8K 12GSDI Studio Monitor

Availability:In stock
Cat No.
45352
SKU
BM-U175
SWIT

Order Now - Usually available to despatch in 1-2 weeks

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£4,194.00 £3,495.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £250

  • Price Match

    Price Match

    Request here

Product Information

SWIT BM-U175 17.3-inch 4K/8K 12GSDI Studio Monitor

17.3-inch 4K Monitor

UHD panel, 91.5% DCI-P3

BM-U175 adopts a 17.3-inch 8-bit+2FRC LCD
panel, UHD 3840×2160 resolution, 300nits LED
backlight, 800:1 contrast, 91.5% DCI-P3 color gamut. The viewing angle is H178° / V178°.

Multi 4K/8K Interfaces

12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K
HDMI 2.0 (4K60P)
12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)

Display Modes

Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs.
You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.

Multi CG & EOTF Viewing

Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.

3DLUT Auto Self-Calibration

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port.
The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically.

HDR/SDR De-log LUTs

The monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc.
You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files.

  • 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
  • 12GSDI via SFP Fiber input (Optional)
  • ST2110 IP via SFP Fiber input (Optional)
  • 3DLUT Auto Self-calibration without PC
LCD Performance
Size 17.3 inches
Display area 381.88×214.82mm
Resolution 3840×2160
Aspect ratio 16:9
Brightness 300nits
Contrast 800:1
Color 16.77 million colors
Viewing Angle Horizontal: 178°; Vertical: 178°
Input
BNC ×4 12G/6G/3G/HD/SD-SDI input3G/HD/SD-SDI input
HDMI ×1 HDMI 2.0 input
Output
BNC ×4 12G/6G/3G/HD/SD-SDI loop output
RS485 ×1 TSL 3.1/4.0 UMD output
Analog audio 3.5mm headphone and speaker
Video Format
SDI

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)

HDMI 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
General
Input voltage DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption 60W
Working temperature 0°C~+50°C
Working humidity 10%~90%
Storage temperature -15°C~+60°C
Storage humidity 10%~90%
Dimensions 436×310.8×88.8mm
Net weight (main body) 5.9kg
