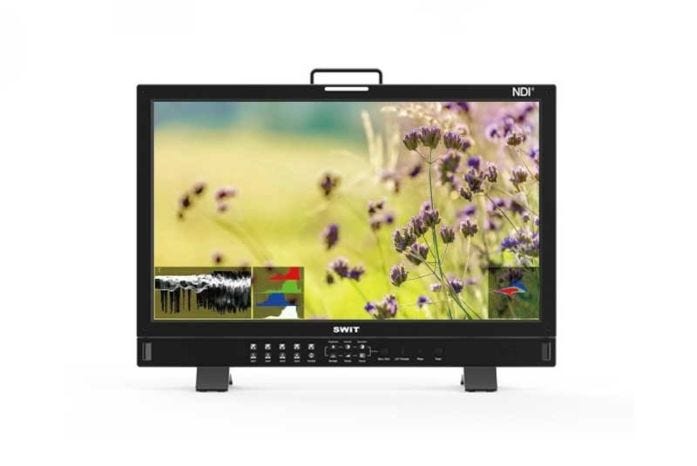

Swit BM-245-NDI 23.8-inch Professional NDI Monitor
Availability:In stock
Cat No.
46368
SKU
BM-245-NDI
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Special Price
£1,260.00
£1,050.00
Save:
£322.00
Save:
£386.40
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Swit BM-245-NDI 23.8-inch Professional NDI Monitor
23.8-inch WCG Panel
FHD, 100% DCI-P3 Coverage
The BM-245-NDI monitor adopts a 23.8-inch FHD 1920x1080 LCD panel, 100% DCI-P3 coverage wide color gamut, 400nits LED backlight, H/V 178° viewing angle for professional NDI® broadcast productions.
NDI®, SDI and HDMI
BM-245-NDI monitor provides multiple inputs including:
- High bandwidth NDI® up to 4K;
- 3GSDI input×2; Loop out×1
- NDI® decode to 3GSDI out ×1
- HDMI 2.0 input ×1
NDI® Sources Selection
All NDI® sources will be auto detected when the monitor is connected to NDI® network, and quickly select NDI® sources from a list in monitor menu. The monitor supports Discover Server to pull NDI® sources from different IP segments, and support NDI® low bandwidth mode as well.
All NDI® sources will be auto detected when the monitor is connected to NDI® network, and quickly select NDI® sources from a list in monitor menu. The monitor supports Discover Server to pull NDI® sources from different IP segments, and support NDI® low bandwidth mode as well.
PBP / PIP Display Mode
You can select any 2 sources from NDI®, SDI or HDMI to display simultaneously by Pic-by-Pic mode or Pic-in-Pic mode.
You can select any 2 sources from NDI®, SDI or HDMI to display simultaneously by Pic-by-Pic mode or Pic-in-Pic mode.
HDR/SDR EOTFs and Color Gamut Selection
The BM-245-NDI provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.
The BM-245-NDI provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.
3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211
By X-rite i1 or JETI Specbos 1211
With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0
VICO 1.97 Eye Protect
BM-245-NDI monitor has a specially adjusted spectrum of its LED backlight, to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.
The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.
BM-245-NDI monitor has a specially adjusted spectrum of its LED backlight, to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.
The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.
Audio Patterns
BM-245-NDI monitor will de-embed
2-ch NDI audios;
8-ch HDMI audios;
16-ch SDI audios,
display audio meters and Lissajous paterns, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.
BM-245-NDI monitor will de-embed
2-ch NDI audios;
8-ch HDMI audios;
16-ch SDI audios,
display audio meters and Lissajous paterns, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.
Webserver IP Remote Control
The BM-245-NDI supports webserver remote control by Ethernet LAN connection.
Use a computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without installing any APP.
The BM-245-NDI supports webserver remote control by Ethernet LAN connection.
Use a computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without installing any APP.
Power Supply
The BM-245-NDI consumes 45W power, supports both AC 100-240V input and 4-pin XLR DC 12-17V input, and equipped with a V-mount battery plate on the rear panel. (Gold mount for option)
The BM-245-NDI consumes 45W power, supports both AC 100-240V input and 4-pin XLR DC 12-17V input, and equipped with a V-mount battery plate on the rear panel. (Gold mount for option)
- 23.8-inch 1920×1080 IPS LCD Panel
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting LCD
- High bandwidth 4K NDI® monitoring
- 3GSDI 2-in 1-loop, HDMI2.0 input
- NDI® decode to 3GSDI output
- NDI®/SDI/HDMI PBP or PIP view
- Auto detect and quick select NDI® sources
- Support NDI® Discover Server
- Support NDI® Low bandwidth mode
- Rec 709 / DCI-P3 / Rec 2020 color gamut selection
- 3DLUT Auto Self-calibration without PC
- Built-in Delog LUTs and User LUTs upload by USB
- Waveform / Vector / Histogram
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous pattern
- IP webserver remote control
- AC, DC and battery plate power
| LCD Performance | |
|---|---|
| Size |
|
|
Display Area |
|
|
Resolution |
|
|
Aspect Ratio |
|
| Brightness |
|
| Contrast |
|
|
Color Gamut |
|
|
Color Depth |
|
|
Eye Protect |
|
|
Viewing Angle |
|
| Input | |
|---|---|
|
RJ45 ×1 |
|
|
BNC ×2 |
|
| HDMI ×1 |
|
|
RS485 ×1 |
|
|
RS485 ×1 |
|
| Output | |
|---|---|
|
BNC ×1 |
|
|
BNC×1 |
|
|
RS485 ×1 |
|
|
Analog audio |
|
| Video Format | |
|---|---|
|
NDI® |
|
|
NDI® decoded to SDI out |
|
| SDI IN1/2 and LOOP |
|
|
HDMI IN |
|
| General | |
|---|---|
|
Input Voltage |
|
|
Power Consumption |
|
|
Working Temperature |
|
|
Working Humidity |
|
|
Storage Temperature |
|
|
Storage Humidity |
|
| Dimensions |
|
| Net weight (main body) |
|
