Sony HDVF-EL75//U 7.4-inch OLED Viewfinder
Availability:In stock
Cat No.
16239
SKU
HDVF-EL75//U
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£5,407.20
£4,506.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

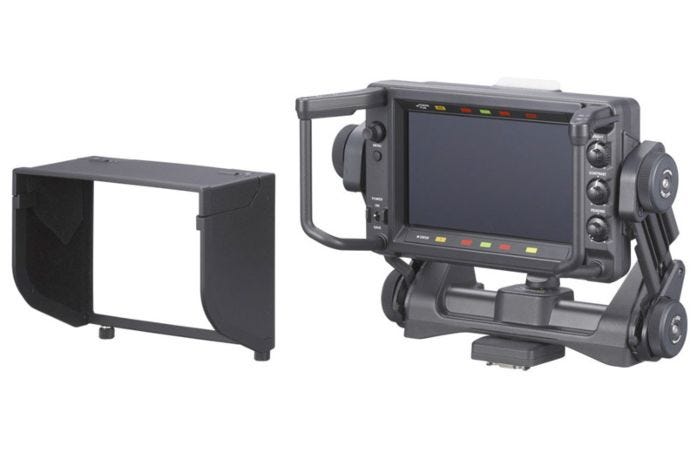

Sony HDVF-EL75//U 7.4-inch OLED Viewfinder
Stunning OLED image quality for portable cameras
The 7.4-inch* HDVF-EL75//U Viewfinder delivers strikingly high contrast, a wide dynamic range, and a fast response time thanks to the use of revolutionary Organic Light Emitting Diode (OLED) display technology.
OLED panels help prevent light emission when reproducing dark shades, resulting in very deep blacks and a contrast ratio of more than 1,000,000:1. The lack of a backlight allows the device to control all phases of light emission from zero to peak brightness. The innovative technology delivers exceptional colour expression and detail without wasting power, so it is also an exceptional energy-saver.
High Definition acquisition requires extremely precise focusing, so OLED image quality delivers significant benefits by allowing the operator to accurately see contrast and colour levels when framing a shot. A wide viewing angle aids operator comfort while an extremely fast response time is particularly useful for applications such as sports coverage.
In addition, the HDVF-EL75 is packed with a wide range of sophisticated, user-friendly features such as Focus Assist, four assignable switches and a position-adjustment mechanism with unprecedented flexibility.
Key Features:
- 7.4-inch, quarter HD (960 x 540) panel with advanced Organic Light Emitting Diode (OLED) display technology.
- Quick response for tracking and focusing on moving objects
- High contrast and wide dynamic range, thanks to OLED panel characteristics such as deep black colour reproduction and high-peak brightness
- Incorporating a 10-bit panel driver, the OLED panel creates smoother-than-ever gradation from dark to bright portions
- Stable and long-term colour reproduction with Sony’s unique feedback circuit
- Focus Assist function supports accurate focusing
- Image Magnification function magnifies just the portion of the image that is in the viewfinder display
- Peaking Plus function enhances the edge of an object by colour, area selected, or both
- Four assignable switches
- Waveform Monitor function
- Flexible position adjustment mechanism makes it easy to place the viewfinder to suit the operator - or even fold downwards when not in use
- Stable and long-term colour reproduction with Sony’s unique feedback circuit
- Focus Assist function supports accurate focusing
- Image Magnification function magnifies just the portion of the image that is in the viewfinder display
- Peaking Plus function enhances the edge of an object by colour, area selected, or both
- Indoor hood
- Number plate
- V-wedge shoe attachment
- Hexagonal wrench
- 4 socket head cap screws
- Cleaning cloth
- Connecting cable
- Operation manual
General -
Power requirements: 10.5 V to 17.0 V DC (supplied by the camera)
Power consumption: 19.5 W
Operating temperature: –20°C to +45°C (–4°F to +113°F)
Mass: 3.5 kg (7 lb 11 oz)
Display Unit -
Panel: 7.4-inch (188 mm) colour OLED panel
Effective picture size (H/V, 16:9 aspect ratio): 164 × 92 mm (6 1/2 × 3 5/8 inches)
Effective pixels: 960 (H) × 540 (V) × 3 (RGB)
Performance -
Brightness (peak brightness, typical): 350 cd/m2
Resolution: 500 or more lines
Colour temperature: D65
Supported Formats -
1080: 23.98PsF, 24PsF, 25PsF, 29.97PsF, 30PsF, 50i, 59.94i, 60i
720: 50p, 59.74p, 60p
Connectors -
Camera connector: Round 20-pin (x1)
Supplied Accessories -
- Indoor hood
- Number plate
- V-wedge shoe attachment
- Hexagonal wrench
- 4 socket head cap screws
- Cleaning cloth
- Connecting cable
- Operation manual
