Product Information

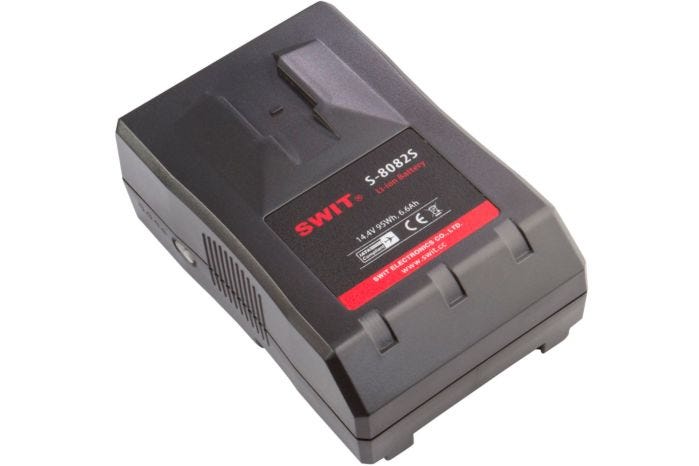

SWIT S-8082S V-Mount Battery
95Wh V-mount Battery Pack
S-8082S is the V-mount rechargeable Li-ion battery pack for professional video cameras. It’s compact design, smaller in size than S-8080S.
95Wh / 6.6Ah Capacity
Consists of 12pcs 18650 battery cells, and reaches 95Wh/6.6Ah high capacity. Run approx 3 hours for normal 30W ENG cameras, and not restricted by IATA air transportation regulations.
Reliable V-mount Connection
S-8082S is the standard SONY V-mount connection and we adopt the high quality metal V-wedge that ensures the reliable mounting.
Built-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8082S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc. The Max Power from D-tap is 70W, 3.5A.
4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
Key Features:
- Li-ion, 14.4V, 95Wh capacity
- D-tap output socket
- 4-level LED power indicator
- V-mount connection
- Not restricted by IATA
- Multiple circuit protections
- Li-ion, 14.4V, 95Wh capacity
- 4-level LED power indicator
- D-tap output socket
- V-mount connection
| Product | S-8082S |
| Nominal Voltage | 14.4V |
| Capacity | 95Wh/6.6Ah |
| Max output power | In total:150W Electrodes:150W,12A D-tap:120W,10A |
| Mount Type | V-mount |
| Operation Temperature | 0-40°C |
| Net weight | 710g |
| Dimensions | 134×88×52mm |
